Industrial LED Luminaire 27W (INDUSTRY.3)
Product code: INDUSTRY.3-030-112
Power | 27W |
Luminous flux @ 4,000К |
3,400 |
Luminous flux @ 5.000К |
3,400 |
Efficacy | 125lm/W |
Ingress protection | IP67 |
Power |
510W |
Luminous flux @ 4,000К |
69,000 |
Luminous flux @ 5.000К |
69,000 |
Efficacy | 135lm/W |
Ingress protection | IP67 |
Power | 510W |
Voltage / Frequency | 176-276V/ 50Hz |
Voltage | 100-276V* |

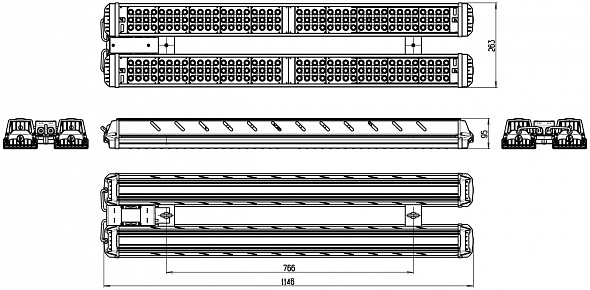

Dimensions, LхWхH | 1,160x265x100 mm |
Power factor | >0.95 |
Luminous flux @ | |
4,000 К | 69,000 lm |
3,000 К | 69,000 lm |
Efficacy | 130 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 240 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I |
Wire section | 3х0.75mm² |
Weight ntw/gross | 14.0kg / 15.2kg |
Individual package | 1,176х273х139 mm |
* optionally (on request of customer) |
Power | 27W |
Luminous flux @ 4,000К |
3,400 |
Luminous flux @ 5.000К |
3,400 |
Efficacy | 125lm/W |
Ingress protection | IP67 |
Power |
205W |
Luminous flux @ 4,000K |
27,500 |
Luminous flux @ 5.000К |
27,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
240W |
Luminous flux @ 4,000К |
32,100 |
Luminous flux @ 5.000К |
32,100 |
Efficacy | 133lm/W |
Ingress protection | IP67 |
Power |
15W |
Luminous flux @ 4,000 |
1,600 |
Efficacy | 106lm/W |
Ingress protection | IP66 |
Please fill in the form. We will filter products for you and give a detailed description.
