Office Slim LED panel 24W
Product code: SLIMPANEL.2-P300x1200-25
| Power | 24W |
| Luminous flux @ 3,000К | 2,500lm |
| Luminous flux @ 4,000К | 3,000lm |
| Luminous flux @ 5,000К | 3,000lm |
| Efficacy | 125lm/W |
| Ingress protection | IP40 |

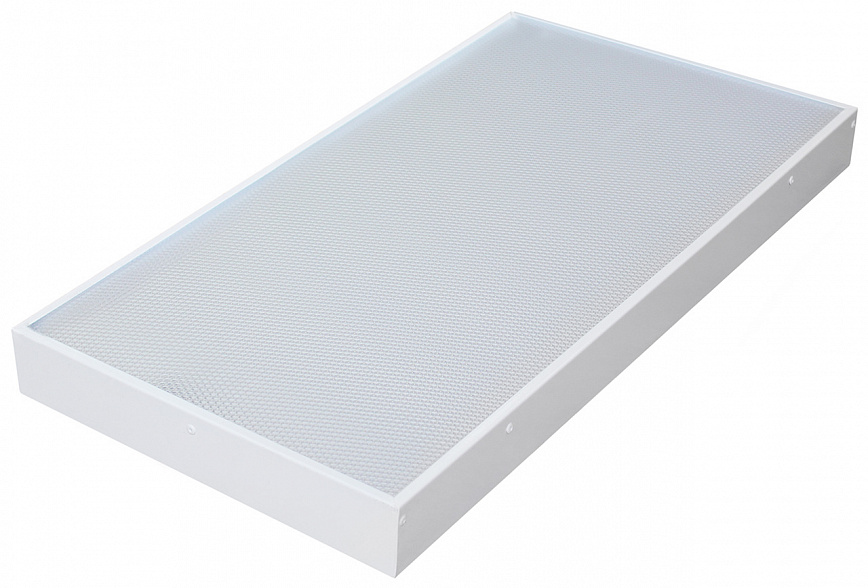

Office LED panel 20W
Product code: OFFICE 20-M600x300
|
Power |
20W |
| Luminous flux @ 3,000К | 2,300lm |
|
Luminous flux @ 4,000К |
2,400lm |
| Efficacy | 120lm/W |
| Ingress protection | IP40 |
Need help? Send us a message
Diffuser
- Microprismatic Diamond
- Microprismatic Honeycomb
- Opal plexiglas Acrima
- Opaque opal PC
- Transparent
- Transluscent opal
Replacement for 2x18W fluorescent luminaire
- 2.5 times less power consumption
- 5-8 times longer lifetime
- Higher lumen maintenance
- Better quality of light output
- HIgh CRI
- Eco-safe when recycled
| Power | 20W |
| Voltage / Frequency | 176-264V/ 50 Hz |

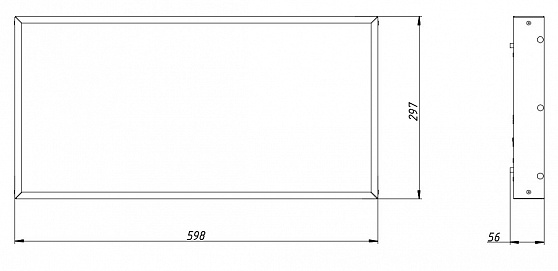

| Dimensions, LхWхH | 595х295х50 mm |
| Power factor | >0.9 |
| Luminous flux @ | |
| 3,000 К | 2,300 lm |
| 4,000 К | 2,400 lm |
| Efficacy | 120 lm/W |

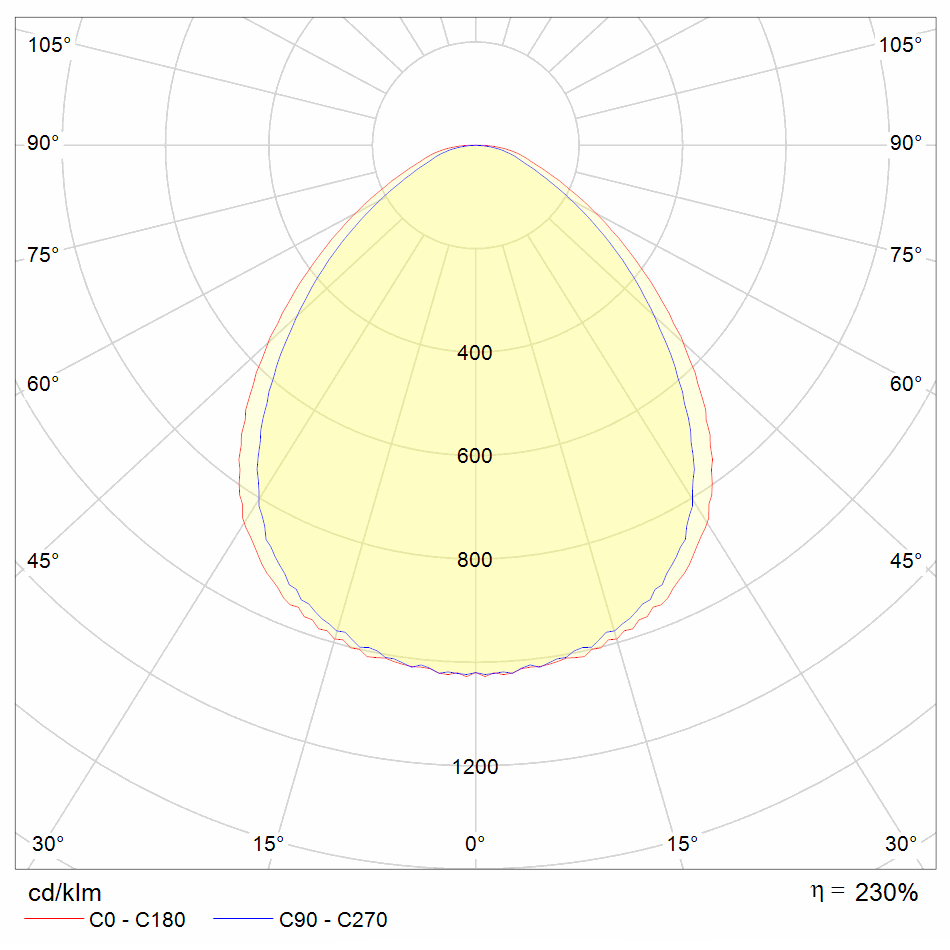

| Light distribution | 75º, 90º, 95º (D) - depending on a diffuser type |
| CRI, Ra | >80 |
| Percent flicker | <5% |
| Number of LEDs | 96 x 0.5 W |
| Ingress protection | IP40 |
| Operating temperatures | +1°С to +45°С |
| Luminaire lifecycle | >50,000 hrs |
| Electrical Safety Classification | I |
| Wire section | 3х0.75 mm² |
| Weight ntw/gross | 2.2kg / 4.5kg (2 pcs) |
| Individual package for 2 pcs | 635х615х75 mm |
Office Slim LED panel 15W
Product code: SLIMPANEL.2-P150x1200-15
|
Power |
15W |
|
Luminous flux @ 3,000К |
1,400lm |
| Luminous flux @ 4,000К | 1,800lm |
| Luminous flux @ 5,000К | 1,800lm |
| Efficacy | 120lm/W |
| Ingress protection | IP40 |
Office LED panel 82W
Product code: OFFICE 82-M1200x600
|
Power |
82W |
| Luminous flux @ 3,000К | 8,000lm |
|
Luminous flux @ 4,000К |
8,400lm |
| Efficacy | 102lm/W |
| Ingress protection | IP40 |
Office Slim LED panel 48W
Product code: SLIMPANEL.2-P600x1200-50
| Power | 48W |
| Luminous flux @ 3,000К | 5,200lm |
| Luminous flux @ 4,000К | 6,200lm |
| Luminous flux @ 5,000К | 6,200lm |
| Efficacy | 129lm/W |
| Ingress protection | IP40 |
