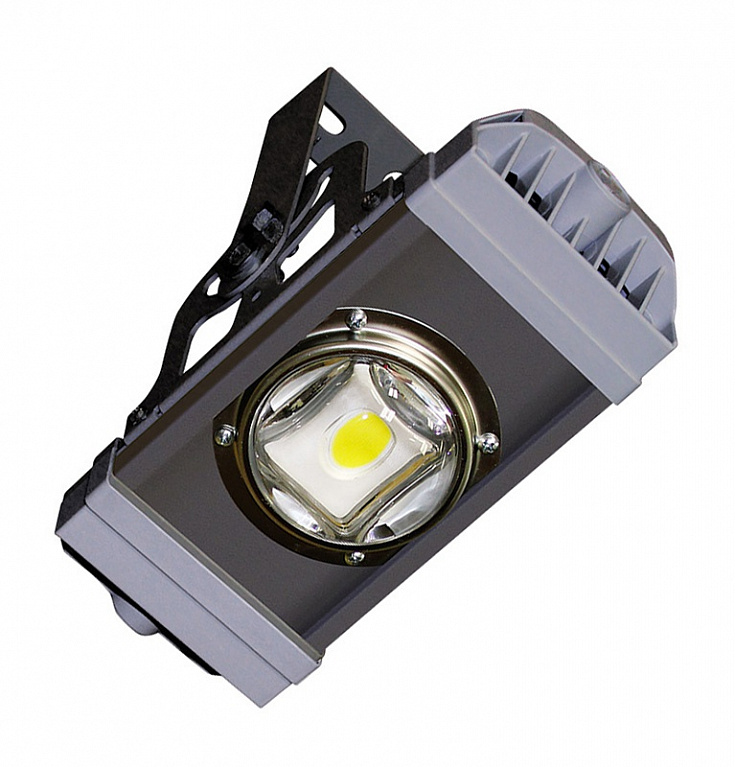

Explosion-proof 40W

Explosion-proof  40W Explosion-proof  40W
Product code: LL-DS-040
Power
40W
Luminous flux @ 4,000К
5,100
Luminous flux @ 5,000К 5,100
Efficacy 130lm/W
Ingress protection IP66

Explosion-proof LED luminaires with a built-in PSU for petroleum, gas, chemical, metallurgical, woodworking and textile industries, as well as special machine and tool engineering. For installation in hazardous areas, zones 1 and 2 according to IEC 60079-10, IEC 60079-14.

Luminaires are covered by the following forms of explosion-proof protection:

  • Ex m encapsulation according to IEC 60079-18;
  • Ex d flameproof protection according to IEC 60079-1;
  • Ex e increased safety according to IEC 60079-7;
  • Ex t protection for explosive dust atmosphere according to IEC 60079-31.

 Product codes for versions of a luminaire

  • 1Ex mb e IIC T5 Gb/Ex tb IIIC 100°С Db;
  • 1Ex mb d IIC T5 Gb/Ex tb IIIC 100 °С Db.
Power 40W
Voltage / Frequency 176-276V/ 50Hz
Dimensions, LхWхH 296x134x177 mm
Power factor >92
Luminous flux @ 4,000 К 5,200 lm
Luminous flux @ 5,000 К 5,200 lm
Efficacy 130 lm/W
Light distribution Direct
Number of LEDs, pcs 1 COBs
Light distribution diagrams wide (asymmetric) cosine deep focused
CRI, Ra 70, 80, 90
Ingress protection IP66
Operating temperatures -40°С to +45°С
Luminaire lifecycle 50,000 hrs
Electrical Safety Classification I
Wire section 3х0.75mm²
Weight 2.8kg
Explosion-proof  85W

Explosion-proof 85W

Product code: LL-DS-085
Power
85W
Luminous flux @ 4,000К
10,600
Luminous flux @ 5,000К 10,600
Efficacy 124lm/W
Ingress protection IP66
Explosion-proof  170W

Explosion-proof 170W

Product code: LL-DS-170
Power
170W
Luminous flux @ 4,000К
21,200
Luminous flux @ 5,000К 21,200
Efficacy 110lm/W
Ingress protection IP66
Explosion-proof  50W

Explosion-proof 50W

Product code: LL-DS-040-1104
Power
50W
Luminous flux @ 4,000К
5 800
Luminous flux @ 5,000К 5 800
Efficacy 116lm/W
Ingress protection IP66
Explosion-proof  50W

Explosion-proof 50W

Product code: LL-DS-050
Power
50W
Luminous flux @ 4,000К
6,000
Luminous flux @ 5,000К 6,000
Efficacy 120lm/W
Ingress protection IP66
