Industrial LED Luminaire 130W (INDUSTRY.3)
Product code: INDUSTRY.3-135-160
Power |
130W |
Luminous flux @ 4,000К |
17,500 |
Luminous flux @ 5.000К |
17,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
54W |
Luminous flux @ 4,000К |
6,800 |
Luminous flux @ 5.000К |
6,800 |
Efficacy | 126lm/W |
Ingress protection | IP67 |
Main features
Power | 54W |
Voltage / Frequency | 176-276V/ 50Hz |
Voltage | 100-276V* |

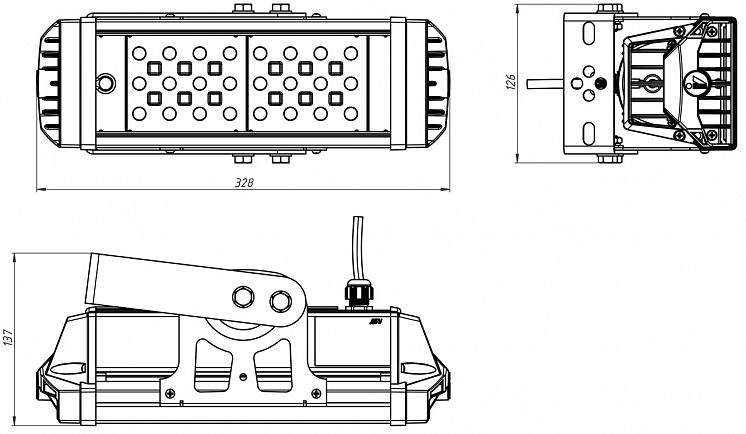

Dimensions, LхWхH | 328х127х137 mm |
Power factor | >0.95 |
Luminous flux @ | |
4,000 К | 6,800 lm |
5,000 К | 6,800 lm |
Efficacy | 126 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 24 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I |
Wire section | 3х0.75mm² |
Weight ntw/gross | 2.6kg / 2.9kg |
Individual package | 340х135х144 mm |
* optionally (on request of customer) |
Power |
130W |
Luminous flux @ 4,000К |
17,500 |
Luminous flux @ 5.000К |
17,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
105W |
Luminous flux @ 4,000К |
13,800 |
Luminous flux @ 5.000К |
13,800 |
Efficacy | 131lm/W |
Ingress protection | IP67 |
Power |
80W |
Luminous flux @ 4,000-6,000К |
10,400 |
Luminous flux @ 3.000К |
10,000 |
Efficacy | 130lm/W |
Ingress protection | IP67 |
Power | 40W |
Luminous flux @ 4,000К |
5,000 |
Luminous flux @ 5.000К |
5,000 |
Efficacy | 125lm/W |
Ingress protection | IP67 |
