Office Slim LED panel 48W
Product code: SLIMPANEL.2-P600x1200-50
| Power | 48W |
| Luminous flux @ 3,000К | 5,200lm |
| Luminous flux @ 4,000К | 6,200lm |
| Luminous flux @ 5,000К | 6,200lm |
| Efficacy | 129lm/W |
| Ingress protection | IP40 |

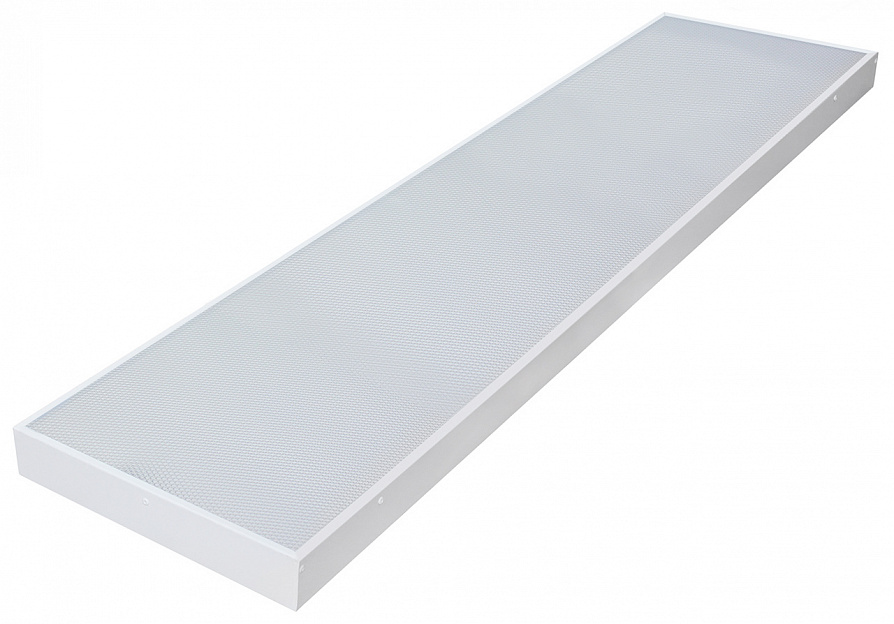

Office LED panel 41W
Product code: OFFICE 41-M1200x300
|
Power |
41W |
| Luminous flux @ 3,000К |
4 000lm |
| Luminous flux @ 4,000К | 4 200lm |
| Efficacy | 102lm/W |
| Ingress protection | IP40 |
Need help? Send us a message
Diffuser
- Microprismatic Diamond
- Microprismatic Honeycomb
- Opal plexiglas Acrima
- Opaque opal PC
- Transparent
- Transluscent opal
Replacement for 4x18W fluorescent luminaire
- Higher quality of light output
- High CRI
- 2 times less power consumption
- 5-8 times longer lifetime, 15-18 years @ working hours
- Eco-friendly
- Ideal of suspended ceilings (Armstrong/ Grigliato)
Applications
- Public and private bodies
- Primary, secondary and higher educational institutions
- Hospitals and medical practices
- Trade floors
- Exhibition grounds
| Power | 41 W |
| Voltage / Frequency | 176-264V/ 50Hz |
| Dimensions, LхWхH | 1,198х295х50 mm |
| Power factor | >0.9 |
| Luminous flux @ | |
| 3,000 К | 4,000 lm |
| 4,000 К | 4,200 lm |
| Efficacy | 102 lm/W |

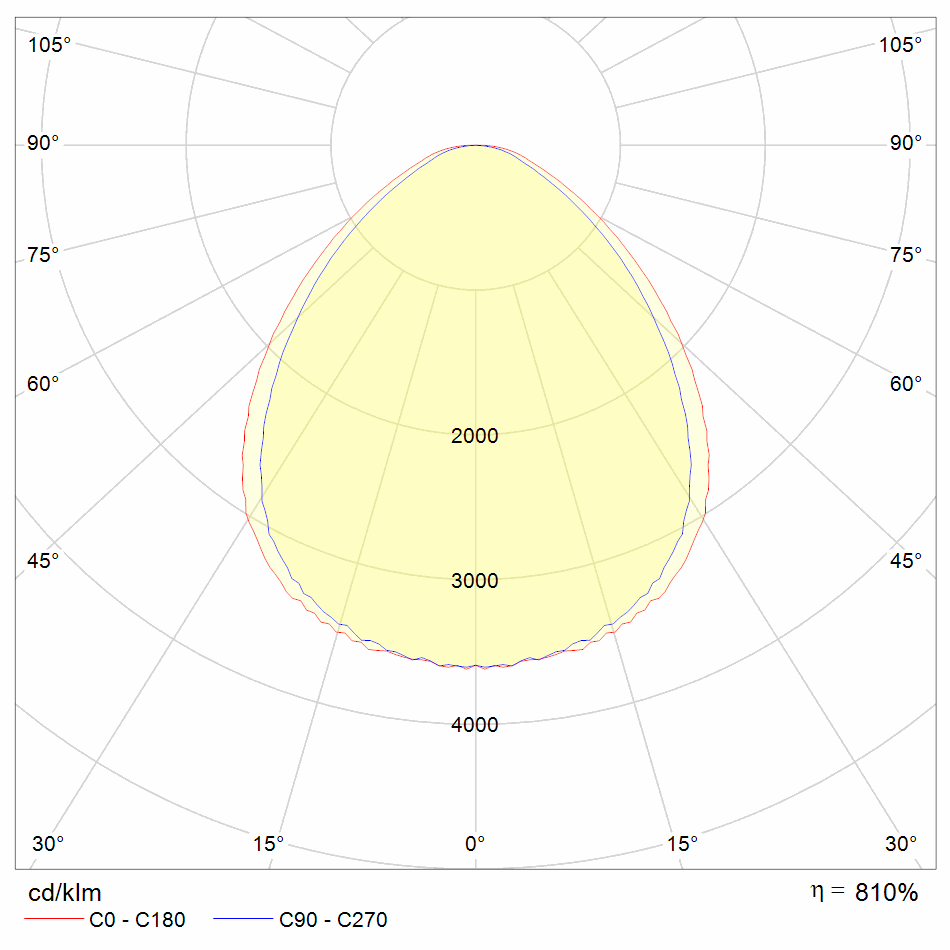

| Light distribution | 75º, 90º, 95º (D) - depending on a diffuser type |
| CRI, Ra | >80 |
| Percent flicker | <5% |
| Number of LEDs | 192 x 0.5 W |
| Ingress protection | IP40 |
| Operating temperatures | +1°С to +45°С |
| Luminaire lifecycle | 50,000 hrs |
| Electrical Safety Classification | I,II |
| Wire section | 3х0.75 mm² |
| Weight ntw/gross | 4.2kg / 4.8kg |
| Individual package | 1 230x315x70 mm |
Office Slim LED panel 24W
Product code: SLIMPANEL.1-P600x600-25
|
Power |
24W |
|
Luminous flux @ 3,000К |
2,700lm |
| Luminous flux @ 4,000К | 3,300lm |
| Luminous flux @ 5,000К | 3,300lm |
| Efficacy | 137 lm/W |
| Ingress protection | IP20 |
Office LED panel 82W
Product code: OFFICE 82-M1200x600
|
Power |
82W |
| Luminous flux @ 3,000К | 8,000lm |
|
Luminous flux @ 4,000К |
8,400lm |
| Efficacy | 102lm/W |
| Ingress protection | IP40 |
Office Slim LED panel 24W
Product code: SLIMPANEL.2-P300x1200-25
| Power | 24W |
| Luminous flux @ 3,000К | 2,500lm |
| Luminous flux @ 4,000К | 3,000lm |
| Luminous flux @ 5,000К | 3,000lm |
| Efficacy | 125lm/W |
| Ingress protection | IP40 |
