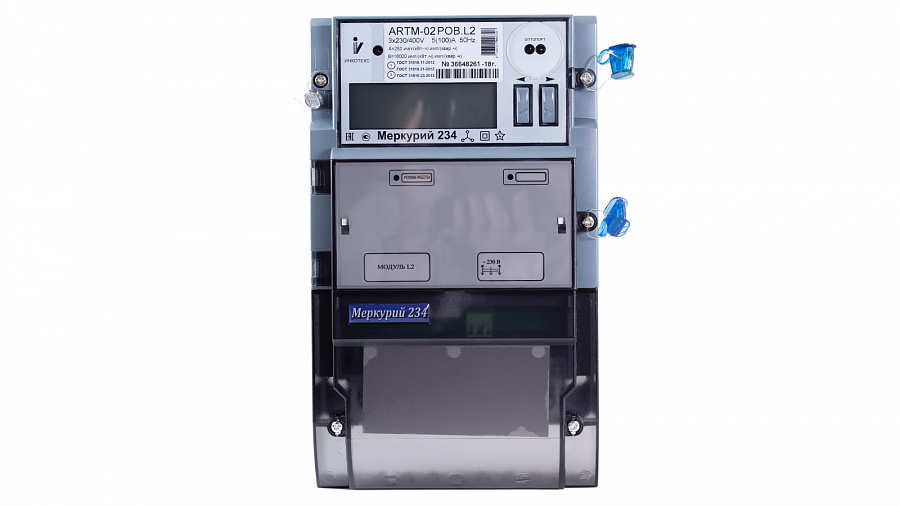

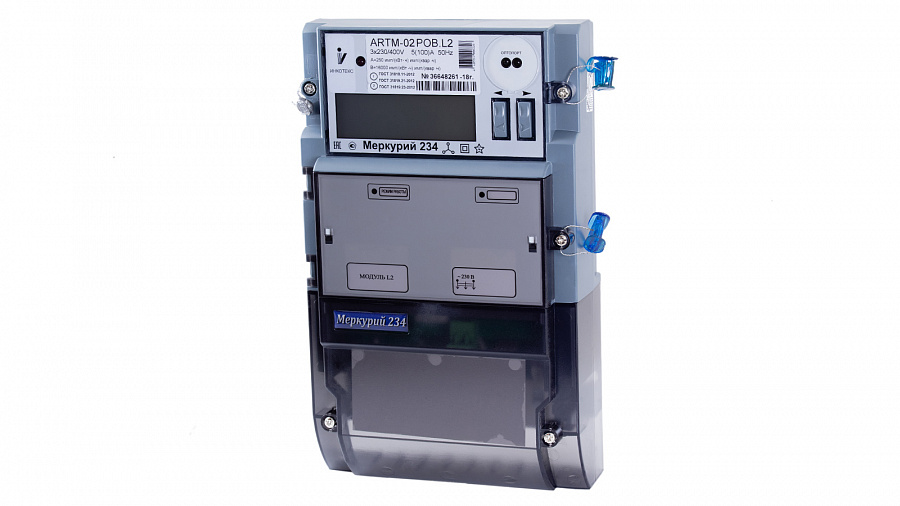

Mercury 234 ARTM

Mercury 234 ARTM Mercury 234 ARTM Mercury 234 ARTM Mercury 234 ARTM
Product code: 234 ARTM

APPLICATION

The meters are designed for uni- and bidirectional multi-tariff measurement of active and reactive electric energy and power, as well as measurement of electrical parameters in three-phase threeand four-wired AC networks with subsequent accumulated data storage, generation of events and transmission of information to the AMR/AMI system’s data collection centers.

The meters are designed for indoor operation and can be installed in the areas with additional environmental protection (installed inside premises, cabinets or boards).

MODIFICATIONS

The meter modifications are available with different rated voltage, rated and peak current, and additional functionalities which are not related to metrological perfomance.

Full description
Get a quote
Need help? Send us a message

Metrological performance

Meter accuracy class (active/reactive)
• transformer connection 0.2S / 0,5 and 0.5S / 1
• direct connection 1 / 2
Rated voltage, V
• CT&VT connection 3*57,7 / 100
• CT, direct connections 3*230 / 400
Base/peak current, A
• CT, CT&VT connections 1/2; 1/10; 5/10
• direct connection 5/60; 5/80; 5/100, 10/100
Peak current for direct connection meters during 10 ms 30*I max
Peak current for CT, CT&VT connection meters during 0.5 s 20*I max
Starting current, А
• CT, CT&VT connections 0.001 / 0.005
• direct connection 0.02

REGULATORY COMPLIANCE

GOST R 52320, GOST R 52322, GOST R 52323. State registers of Russia and CIS countries.

Active/total power consumption in each meter voltage circuit at rated voltage, W/V*A 1 / 9
Total power consumed by each current circuit, max, V*А 0.1
Plug-in interface module power consumption, max, W/V*А 3 / 14
Number of tariffs 4
Data retention during power outage, min, years: 10
Calibration interval, years 16
Warranty period, years 3
Mean time between failures, min, h 220,200
Operating temperature range, °С -45 to +75
Weight, max, kg 1.8

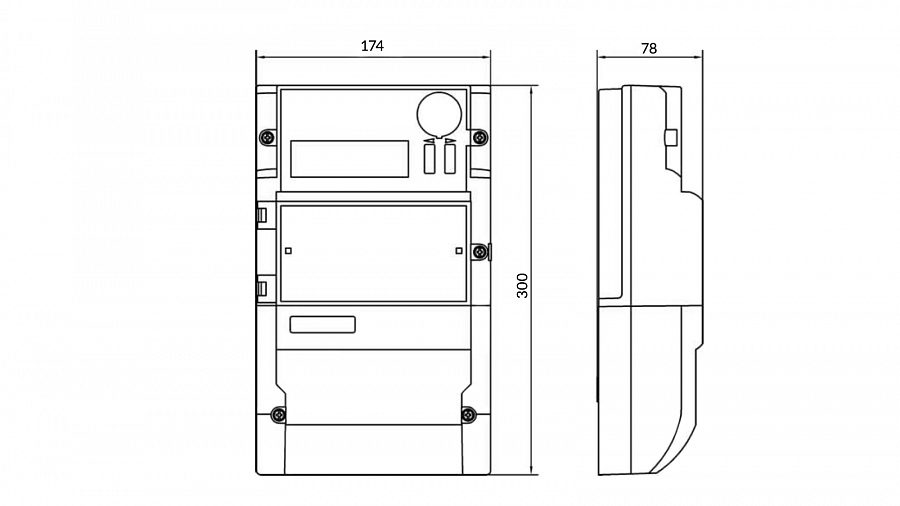

Dimensions (LхWхH), mm 174x78x300

— The meter measures, stores, displaying on LCD and communicate information via different interfaces of active and reactive electrical energy
independently by every tariff zone and cumulatively for all tariff zones for the following periods of time:

  • total cumulative energy;
  • energy at the beginning of the current day and 123 previous days;
  • energy at the beginning of the current month and 36 previous months;
  • energy at the beginning of the current year and previous year;
  • consumption for the current day and previous day;
  • consumption for the current month and 11 previous months.

— Metering of reactive energy by every quadrant in bidirectional meters.

— TOU with the option of setting individual schedule for every day of the week based on 4 tariffs, 16 time zones per day (24 time zones per day
in meters with a DLMS/COSEM). Individual tariffs schedule for every month. Minimal interval of each tariff during 24 hours is 1 minute.

— Measurement of technical losses in power lines and power transformers.

— Measurement of electrical network parameters:

  • instantaneous values of active, reactive and total power for each phase and the sum of phases with the total power vector direction indication;
  • RMS of phase currents and voltages including measurments at one period of frequency for power quality analysis;
  • phase angles;
  • power frequency;
  • power factors of each phase and of their sum;
  • THD of sinusoidal phase lines.

— Two independent power profiles with integration period from 1 to 60 minutes, the second profile can be configured as a technical losses
power profile.

— The storage period is 170 days for 30 minutes averaging time.

— Recording of morning and evening peaks of active and reactive power demand at a specified interval from 1 to 60 minutes with a monthly schedule.

— Event logging including power quality events.

— Built-in interfaces: optical port and RS-485 in all models.

— Optional interfaces on built-in and plug-in modules: RS-485, GSM, NB-IoT, PLC, Ethernet, RF, LoRaWAN, ZigBee.

— External backup power supply input(6 – 12 V DC).

— Multifunctional galvanically isolated pulse output including a load control function.

— Automatic self-diagnosis with error indication.

— Built-in 60A or 100A relay.

— Two nonvolatile electronic seals.

— Magnetic field sensor.

— Recording of unauthorized impacts to the indelible event log.

— Multifunctional LCD with backlight and OBIS-codes indication.

— LCD indication of data without main power.

— DLMS/COSEM and Mercury protocols support.

— Back-up power battery can be replaced without opening the meter

— housing.

— Meters have solid housing and transparent terminal cover to prevent tamper.

Table of commercially available meters modifications. Other modifications are available on request.

Modification Rated voltage, V Nominal/ maximum current, А Accuracy A/R Interfaces, relay
*Two modifications are manufactured commercially:
— ‘D’ – with DLMS/COSEM, SPODES and Mercury protocols support
— missing ‘D’ – only Mercury protocol support.
Mercury 234 ARTM-00 (D)PBR.R 3×57,7/100 5(10) 0,5S/1,0 optical port, 2×RS485
Mercury 234 ARTM-01 (D)POBR.R 3×230/400 5(60) 1,0/2,0 optical port, 2×RS485
Mercury 234 ARTM-02 (D)PBR.R 3×230/400 5(100) 1,0/2,0 optical port, 2×RS485
Mercury 234 ARTM-02 (D)POBR.R 3×230/400 5(100) 1,0/2,0 optical port, 2×RS485
Mercury 234 ARTM-03 (D)PBR.R 3×230/400 5(10) 0,5S/1,0 optical port, 2×RS485
Mercury 234 ARTM2-00 (D)PBR.R 3×57,7/100 5(10) 0,2S/0,5 optical port, 2×RS485
Mercury 234 ARTM2-03 (D)PBR.R 3×230/400 5(10) 0,2S/0,5 optical port, 2×RS485
Mercury 234 ARTM(2)-01 (D)POBR.L2 3×230/400 5(60) 1,0/2,0 optical port, RS485, PLСII
Mercury 234 ARTM(2)-02 (D)PОBR.L2 3×230/400 5(100) 1,0/2,0 optical port, RS485, PLСII
Mercury 234 ARTM(2)-02 (D)PBR.L2 3×230/400 5(100) 1,0/2,0 optical port, RS485, PLСII
Mercury 234 ARTM(2)-03 (D)PBR.L2 3×230/400 5(10) 0,5S/1,0 optical port, RS485, PLСII
Mercury 234 ARTM(2)-01 (D)POBR.L4 3×230/400 5(60) 1,0/2,0 optical port, RS485, PRIME
Mercury 234 ARTM(2)-02 (D)PОBR.L4 3×230/400 5(100) 1,0/2,0 optical port, RS485, PRIME
Mercury 234 ARTM(2)-02 (D)PBR.L4 3×230/400 5(100) 1,0/2,0 optical port, RS485, PRIME
Mercury 234 ARTM(2)-03 (D)PBR.L4 3×230/400 5(10) 0,5S/1,0 optical port, RS485, PRIME
Mercury 234 ARTM-00 (D)PBR.G 3×57,7/100 5(10) 0,5S/1,0 optical port, RS485, GSM
Mercury 234 ARTM-01 (D)PBR.G 3×230/400 5(60) 1,0/2,0 optical port, RS485, GSM
Mercury 234 ARTM-01 (D)POBR.G 3×230/400 5(60) 1,0/2,0 optical port, RS485, GSM
Mercury 234 ARTM-02 (D)PОBR.G 3×230/400 5(100) 1,0/2,0 optical port, RS485, GSM
Mercury 234 ARTM-02 (D)PBR.G 3×230/400 5(100) 1,0/2,0 optical port, RS485, GSM
Mercury 234 ARTM-03 (D)PBR.G 3×230/400 5(10) 0,5S/1,0 optical port, RS485, GSM
Mercury 234 АRTM2-00 (D)PBR.G 3×57,7/100 5(10) 0,2S/0,5 optical port, RS485, GSM
Mercury 234 АRTM2-03 (D)PBR.G 3×230/400 5(10) 0,2S/0,5 optical port, RS485, GSM
Mercury 234 ARTM-00 (D)PBR.F04 3×57,7/100 5(10) 0,5S/1,0 optical port, RS485, LoRaWAN
Mercury 234 ARTM-01 (D)PBR.F04 3×230/400 5(60) 1,0/2,0 optical port, RS485, LoRaWAN
Mercury 234 ARTM-01 (D)POBR.F04 3×230/400 5(60) 1,0/2,0 optical port, RS485, LoRaWAN
Mercury 234 ARTM-02 (D)PОBR.F04 3×230/400 5(100) 1,0/2,0 optical port, RS485, LoRaWAN
Mercury 234 ARTM-02 (D)PBR.F04 3×230/400 5(100) 1,0/2,0 optical port, RS485, LoRaWAN
Mercury 234 ARTM-03 (D)PBR.F04 3×230/400 5(10) 0,5S/1,0 optical port, RS485, LoRaWAN
Mercury 234 АRTM2-00 (D)PBR.F04 3×57,7/100 5(10) 0,2S/0,5 optical port, RS485, LoRaWAN
Mercury 234 АRTM2-03 (D)PBR.F04 3×230/400 5(10) 0,2S/0,5 optical port, RS485, LoRaWAN
Mercury 234 АRTM(2)-03 (D)POK1B.RRG4E 3×230/400 5(10) 0,2S/0,5 optical port, 4 ТИ, 4 ТС, 2×RS485, LTE, Ethernet
Mercury 234 АRTM(2)-03 (D)POK2B.RRE 3×230/400 5(10) 0,2S/0,5 optical port, 4 ТИ, 4 ТС, 2 relay, 2×RS485, Ethernet

Meter modification code structure:

Mercury 234 ARTM2 – 0X DPOKxB RLxGxEFxC.RLxGxEFxC

А – active energy measurement,
R – reactive energy measurement,
T – tariffs (TOU) , electronic seals,
2 – bidirectional measurement,
0Х – code of rated/peak current and voltage, accuracy class,
Rated/peak currents, voltages and accuracy classes

Code Rated (peak) current, A Rated voltage, V Code Accuracy class
00 5/10 3 x 57.7/100 0.2S/0.5 or 0.5S/1
01 5/60 3 x 230/400 1/2
02 5/100 3 x 230/400 1/2
03 5/10 3 x 230/400 0.2S/0.5 or 0.5S/1
04 1/10 3 x 57.7/100 0.2S/0.5 or 0.5S/1
05 1/10 3 x 230/400 0.2S/0.5 or 0.5S/1
06 1/2 3 x 57.7/100 0.2S/0.5 or 0.5S/1
07 1/2 3 x 230/400 0.2S/0.5 or 0.5S/1
08 5/80 3 x 230/400 1/2
09 10/100 3 x 230/400 1/2
D – protocol available DLMS/COSEM, SPODES*,
P – extended program functions,
O – built-in load control relay,
Kx – multifunctional inputs/outputs,
B  – backlight LCD,
R – RS-485,
Lx –PLC (L2-PLC-II, L4-PRIME PLC, L5-G3-PLC, and other),
Gx – GSM modem (G – CSD/GSM/GPRS, G1 – GSM/GPRS, G3 – UMTS/3G, G4 – LTE/4G, G5 – NBIOT, and other),
E – Ethernet 10/100 Base –TX,
Fx – RF modem (F03 – ZigBee, F04 – LoRaWAN Lartech, 0F5 – ISM868, F06 – Aura360, F07 – LoRaWAN Vega, F08 – Kometa, and other),
C – CAN interface.

* — SPODES - PJSC Rosseti companion specification of DLMS/COSEM protocol.
