Mercury 238 ART
Product code: 238 ART

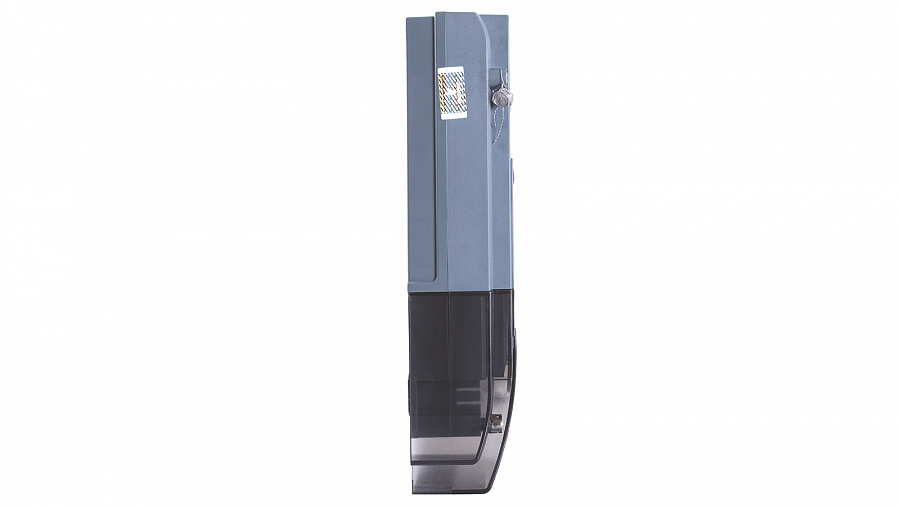

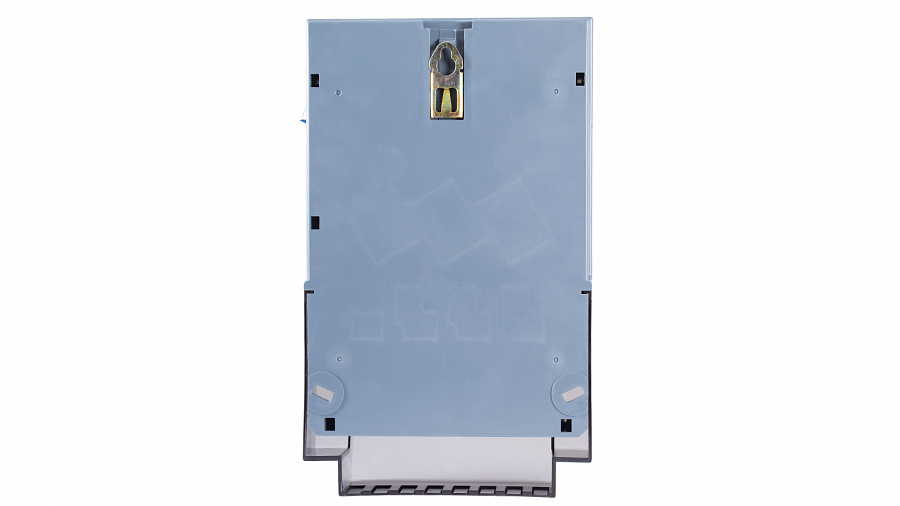

Mercury 234 ART
Product code: 234 ART
APPLICATION
The meters are designed for uni- and bidirectional multi-tariff measurement of active and reactive electric energy and power, as well as measurement of electrical parameters in three-phase threeand four-wired AC networks with subsequent accumulated data storage, generation of events and transmission of information to the AMR/AMI system’s data collection centers.
The meters are designed for indoor operation and can be installed in the areas with additional environmental protection (installed inside premises, inside cabinets or boards).
MODIFICATIONS
The meter modifications are available with different rated voltage, rated and peak current, and additional functionalities which are not related to metrological perfomance.
Need help? Send us a message
Metrological performance
| Meter accuracy class (active/reactive) |
|
| • transformer connection | 0.2S / 0,5 and 0.5S / 1 |
| • direct connection | 1 / 2 |
| Rated voltage, V |
|
| • CT&VT connection | 3*57,7 / 100 |
| • CT, direct connections | 3*230 / 400 |
| Base/peak current, A |
|
| • CT, CT&VT connections | 1/2; 1/10; 5/10 |
| • direct connection | 5/60; 5/80; 5/100 |
| Peak current for direct connection meters during 10 ms | 30*I max |
| Peak current for CT, CT&VT connection meters during 0.5 s | 20*I max |
| Starting current, А |
|
| • CT, CT&VT connections | 0.001 / 0.005 |
| • direct connection | 0.02 |
REGULATORY COMPLIANCE
GOST R 52320, GOST R 52322, GOST R 52323. State registers of Russia and CIS countries.
| Active/total power consumption in each meter voltage circuit at rated voltage, W/V*A | 1 / 9 |
| Total power consumed by each current circuit, max, V*А | 0.1 |
| Plug-in interface module power consumption, max, W/V*А | 1.5 / 24 |
| Number of tariffs | 4 |
| Data retention during power outage, min, years: | 10 |
| Calibration interval, years | 16 |
| Warranty period, years | 3 |
| Mean time between failures, min, h | 220,000 |
| Operating temperature range, °С | -45 to +75 |
| Weight, max, kg | 1.6 |
| Dimensions (LхWхH), mm | 174x65x300 |
— The meter measures, stores, displaying on LCD and communicate information via different interfaces of active and reactive electrical energy
independently by every tariff zone and cumulatively for all tariff zones for the following periods of time:
- total cumulative energy;
- energy at the beginning of the current day and 123 previous days;
- energy at the beginning of the current month and 36 previous months;
- energy at the beginning of the current year and previous year;
- consumption for the current day and previous day;
- consumption for the current month and 11 previous months.
— Metering of reactive energy by every quadrant in bidirectional meters.
— TOU with the option of setting individual schedule for every day of the week based on 4 tariffs, 16 time zones per day (24 time zones
per day (in meters with a DLMS/COSEM and SPODES protocol). Individual tariffs schedule for every month. Minimal interval of each
tariff during 24 hours is 1 minute.
— Measurement of technical losses in power lines and power transformers.
— Measurement of electrical network parameters:
- instantaneous values of active, reactive and total power for each phase with the total power vector direction indication;
- RMS of phase currents and voltages including measurements at one period of frequency for power quality analysis;
- phase angles;
- power frequency;
- power factors of each phase and of their sum;
- THD of sinusoidal phase lines.
— Two independent power profiles with integration period from 1 to 60 minutes, the second profile can be configured as a technical
losses power profile.
— The storage period is 170 days for 30 minutes averaging time.
— Recording of morning and evening peaks of active and reactive power demand at a specified interval from 1 to 60 minutes with a monthly schedule.
— Event logging including power quality events.
— Built-in interfaces: optical port and RS-485 in all models.
— Optional built-in interfaces: PLC, RF, CAN, LoRaWAN, ZigBee.
— External backup power supply (6 – 12 V DC).
— Multifunctional galvanically isolated pulse output including the load control function.
— Automatic self-diagnosis with error indication.
— Built-in 60A or 100A relay.
— Two nonvolatile electronic crimped seals.
— Magnetic field sensor.
— Recording of unauthorized impacts into the indelible event log.
— Multifunctional LCD with backlight and OBIS-codes indication.
— LCD indication of data without main power.
— DLMS/COSEM and Mercury protocols support.
— Back-up power battery can be replaced without opening the meter housing.
— Meters have solid housing and transparent terminal cover for prevention from tamper.
Mercury 231 AT
Product code: 231 АТ
Mercury 231 ART(ш)
Product code: 231 ART(ш)
Mercury 234 ARTM
Product code: 234 ARTM
Table of commercially available meters modifications. Other modifications are available on request.
| Modification | Rated voltage, V | Nominal/ maximum current, А | Accuracy A/R | Interfaces, relay |
|---|---|---|---|---|
|
*Two modifications are manufactured commercially: — ‘D’ – with DLMS/COSEM, SPODES and Mercury protocols support — missing ‘D’ – only Mercury protocol support. |
||||
| Mercury 234 ART-00 (D)PR | 3×57,7/100 | 5(10) | 0,5S/1,0 | optical port, RS485 |
| Mercury 234 ART-01 (D)PR | 3×230/400 | 5(60) | 1,0/2,0 | optical port, RS485 |
| Mercury 234 ART-01 (D)POR | 3×230/400 | 5(60) | 1,0/2,0 | optical port, RS485 |
| Mercury 234 ART-02 (D)PR | 3×230/400 | 5(100) | 1,0/2,0 | optical port, RS485 |
| Mercury 234 ART-02 (D)POR | 3×230/400 | 5(100) | 1,0/2,0 | optical port, RS485 |
| Mercury 234 ART-03 (D)PR | 3×230/400 | 5(10) | 0,5S/1,0 | optical port, RS485 |
| Mercury 234 ART2-00 (D)PR | 3×57,7/100 | 5(10) | 0,2S/0,5 | optical port, RS485 |
| Mercury 234 ART2-03 (D)PR | 3×230/400 | 5(10) | 0,2S/0,5 | optical port, RS485 |
| Mercury 234 ART-01 ORL1 | 3×230/400 | 5(60) | 1,0/2,0 | optical port, RS485, PLСI |
| Mercury 234 ART-02 RL1 | 3×230/400 | 5(100) | 1,0/2,0 | optical port, RS485, PLСI |
| Mercury 234 ART-03 RL1 | 3×230/400 | 5(10) | 0,5S/1,0 | optical port, RS485, PLСI |
| Mercury 234 ART-00 (D)PF04 | 3×57,7/100 | 5(10) | 0,5S/1,0 | optical port, LoRaWAN |
| Mercury 234 ART-01 (D)PF04 | 3×230/400 | 5(60) | 1,0/2,0 | optical port, LoRaWAN |
| Mercury 234 ART-01 (D)POF04 | 3×230/400 | 5(60) | 1,0/2,0 | optical port, LoRaWAN |
| Mercury 234 ART-02 (D)PF04 | 3×230/400 | 5(100) | 1,0/2,0 | optical port, LoRaWAN |
| Mercury 234 ART-02 (D)POF04 | 3×230/400 | 5(100) | 1,0/2,0 | optical port, LoRaWAN |
| Mercury 234 ART-03 (D)PF04 | 3×230/400 | 5(10) | 0,5S/1,0 | optical port, LoRaWAN |
| Mercury 234 ART2-00 (D)PF04 | 3×57,7/100 | 5(10) | 0,2S/0,5 | optical port, LoRaWAN |
| Mercury 234 ART2-03 (D)PF04 | 3×230/400 | 5(10) | 0,2S/0,5 | optical port, LoRaWAN |
Meter modification code structure:
Mercury 234 ART2 – 0X DPOKxB RLxGxEFxC
А – active energy measurement,
R – reactive energy measurement,
T – tariffs (TOU),
2 – bidirectional measurement,
0Х – code of rated/peak current and voltage, accuracy class,
Rated/peak currents, voltages and accuracy classes
| Code | Rated (peak) current, A | Rated voltage, V | Code Accuracy class |
| 00 | 5/10 | 3 x 57.7/100 | 0.2S/0.5 or 0.5S/1 |
| 01 | 5/60 | 3 x 230/400 | 1/2 |
| 02 | 5/100 | 3 x 230/400 | 1/2 |
| 03 | 5/10 | 3 x 230/400 | 0.2S/0.5 or 0.5S/1 |
| 04 | 1/10 | 3 x 57.7/100 | 0.2S/0.5 or 0.5S/1 |
| 05 | 1/10 | 3 x 230/400 | 0.2S/0.5 or 0.5S/1 |
| 06 | 1/2 | 3 x 57.7/100 | 0.2S/0.5 or 0.5S/1 |
| 07 | 1/2 | 3 x 230/400 | 0.2S/0.5 or 0.5S/1 |
| 08 | 5/80 | 3 x 230/400 | 1/2 |
| 09 | 10/100 | 3 x 230/400 | 1/2 |
P – extended program functions,
O – built-in load control relay,
Kx – multifunctional inputs/outputs,
B – backlight LCD,
R – RS-485,
Lx –PLC (L2-PLC-II, L4-PRIME PLC, L5-G3-PLC, and other),
Gx – GSM modem (G – CSD/GSM/GPRS, G1 – GSM/GPRS, G3 – UMTS/3G, G4 – LTE/4G, G5 – NBIOT, and other),
E – Ethernet 10/100 Base –TX,
Fx – RF modem (F03 – ZigBee, F04 – LoRaWAN Lartech, 0F5 – ISM868, F06 – Aura360, F07 – LoRaWAN Vega, F08 – Kometa, and other),
C – CAN interface.
* — SPODES - PJSC Rosseti companion specification of DLMS/COSEM protocol.
Have questions?
Please fill in the form. We will filter products for you and give a detailed description.
