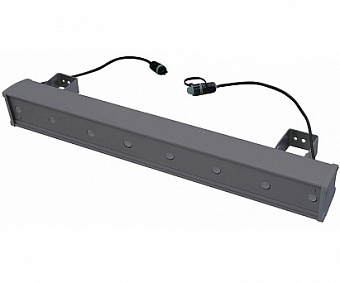

LED luminaire for architectural lighting 30W

LED luminaire for architectural lighting 30W LED luminaire for architectural lighting 30W
Product code: Fasad-1000
Power
30W
Luminous flux @ 4,000К
2,900
Luminous flux @ 2,700К  2,200
Luminous flux @ 2,400К 2,200
Efficacy 96lm/W
Ingress protection IP65

General information

  • LED luminaires for architectural lighting are for illumination of buildings and landscape.
  • Weather-proof powder-coated aluminium housing and shock-resistant lenses.
  • Various colours of illumination light: white, red, green, blue, yellow and orange.
  • High-efficacy LEDs from Osram.

Applications

  • Exterior wall grazing and washing
  • Landscape lighting
  • Monuments, fountains, expositions lighting, etc.

Advantages

  • A wide range of ambient operating temperatures
  • In-line mounting with objects illuminated uniformly
  • A wide selection of lenses for objects of any complexity
  • Pivot-joint brackets to tilt luminaires at different angles and change illumination patterns
  • Water-proof connectors for easier electrical connections and in-line connection of up to 100 luminaires without additional electric wiring
  • Minimum maintenance costs
Power 30W
Voltage / Frequency 176-264V/ 50Hz

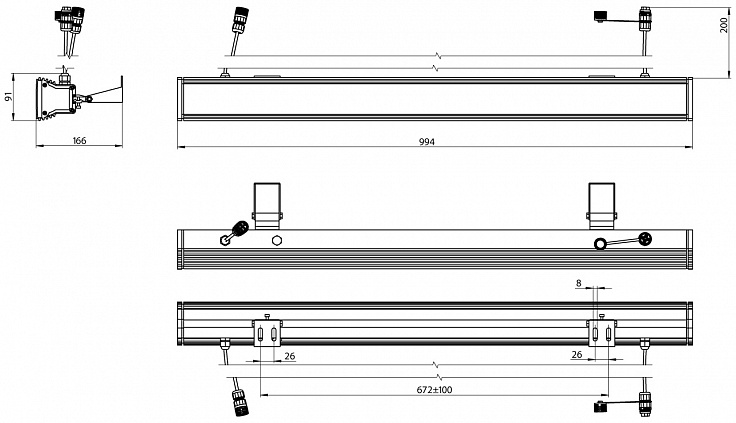

Dimensions, LхWхH 995x91x166
Power factor ≥0.96
Luminous flux @ 4,000К 2,900
Luminous flux @ 2,700К 2,200
Luminous flux @ 2,400К 2,200
Efficacy 96 lm/W
Number of LEDs 14
Beam angle, degree 15 / 30 / 45
Ingress protection IP65
Operating temperatures -40°С to +40°С
Luminaire lifecycle >50,000 hrs
Electrical Safety Classification I
Weight ntw/gross 3.8kg / 4.3 kg
Single package dimensions, mm 1 101x110х110
