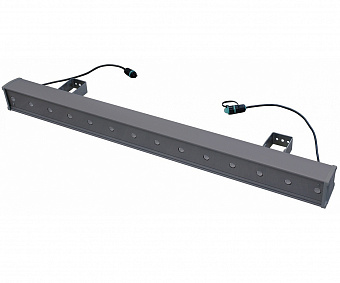

LED luminaire for architectural lighting 30W
Product code: Fasad-1000
|
Power |
30W |
|
Luminous flux @ 4,000К |
2,900 |
| Luminous flux @ 2,700К | 2,200 |
| Luminous flux @ 2,400К | 2,200 |
| Efficacy | 96lm/W |
| Ingress protection | IP65 |

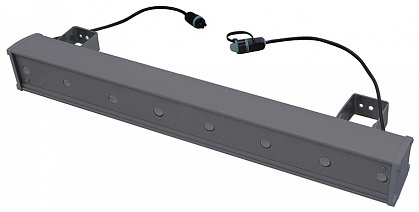

LED luminaire for architectural lighting 19W
Product code: Fasad-500
|
Power |
19W |
|
Luminous flux @ 4,000К |
1,700 |
| Luminous flux @ 2,700К | 1,400 |
| Luminous flux @ 2,400К | 1,400 |
| Efficacy | 89lm/W |
| Ingress protection | IP65 |
Need help? Send us a message
General information
- LED luminaires for architectural lighting are for illumination of buildings and landscape.
- Weather-proof powder-coated aluminium housing and shock-resistant lenses.
- Various colours of illumination light: white, red, green, blue, yellow and orange.
- High-efficacy LEDs from Osram.
Applications
- Exterior wall grazing and washing
- Landscape lighting
- Monuments, fountains, expositions lighting, etc.
Advantages
- A wide range of ambient operating temperatures
- In-line mounting with objects illuminated uniformly
- A wide selection of lenses for objects of any complexity
- Pivot-joint brackets to tilt luminaires at different angles and change illumination patterns
- Water-proof connectors for easier electrical connections and in-line connection of up to 100 luminaires without additional electric wiring
- Minimum maintenance costs
| Power | 19W |
| Voltage / Frequency | 176-264V/ 50Hz |

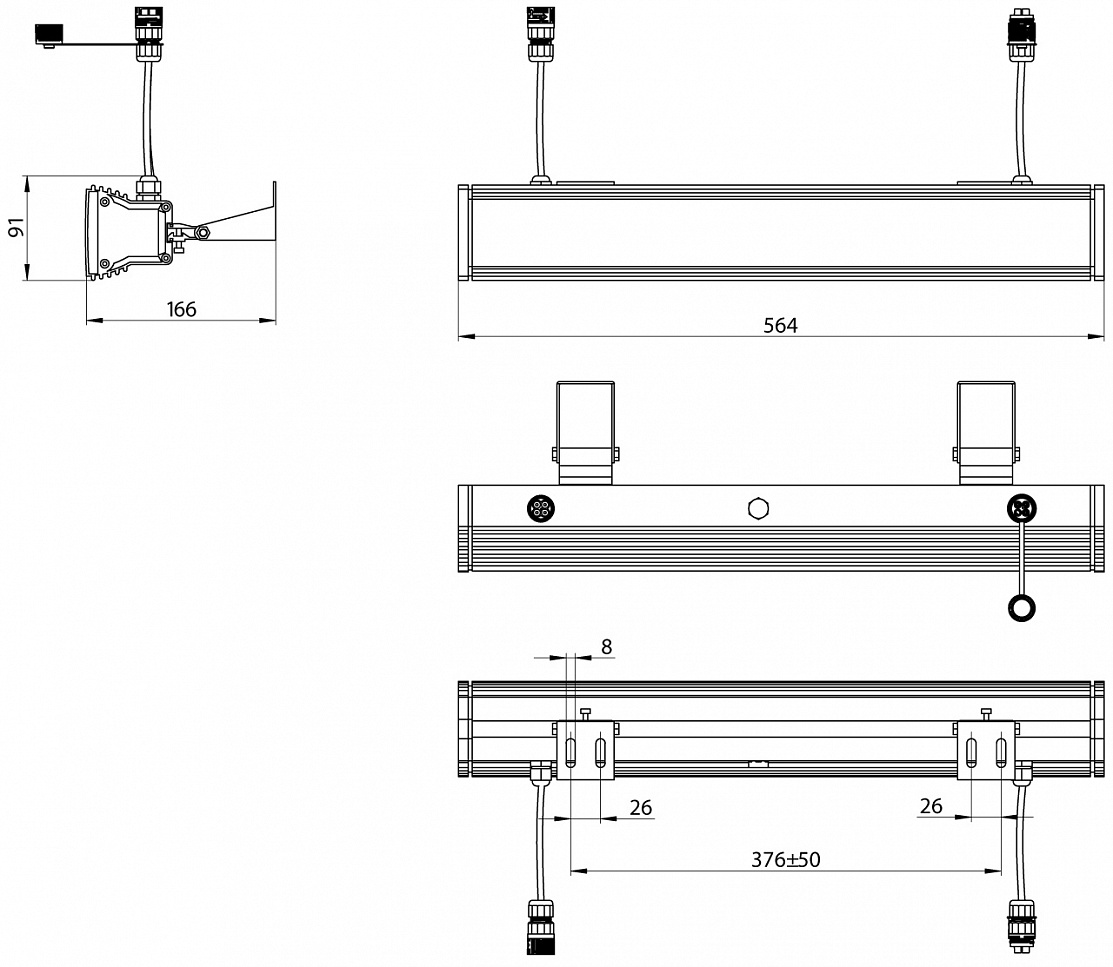

| Dimensions, LхWхH | 565х91х166 mm |
| Power factor | ≥0.96 |
| Luminous flux @ 4,000К | 1,700 lm |
| Luminous flux @ 2,700К | 1,400 lm |
| Luminous flux @ 2,700К | 1,400 lm |
| Efficacy | 89 lm/W |
| Number of LEDs | 8 |
| Beam angle, degree | 15 / 30 / 45 |
| Ingress protection | IP65 |
| Operating temperatures | -40°С to +40°С |
| Luminaire lifecycle | >50,000 hrs |
| Electrical Safety Classification | I |
| Weight ntw/gross | 1.9kg / 2.4 kg |
| Single package dimensions, mm | 580х110х110 |
