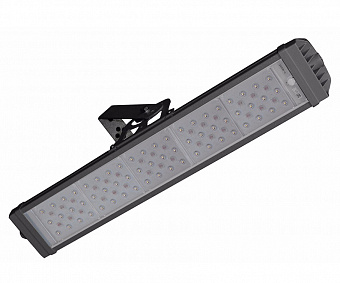

Industrial LED Luminaire 130W (INDUSTRY.3)
Product code: INDUSTRY.3-135-160
|
Power |
130W |
|
Luminous flux @ 4,000К |
17,500 |
|
Luminous flux @ 5.000К |
17,500 |
| Efficacy | 134lm/W |
| Ingress protection | IP67 |

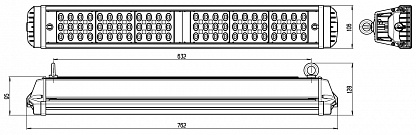

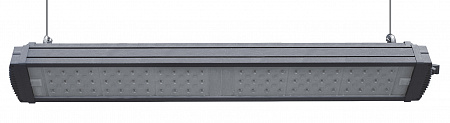

Industrial LED Luminaire 155 Suspended (INDUSTRY.3)
Product code: INDUSTRY.3-160-136/136
|
Power |
155W |
|
Luminous flux @ 4,000К |
20,700 |
|
Luminous flux @ 5.000К |
20,700 |
| Efficacy | 133lm/W |
| Ingress protection | IP67 |
Need help? Send us a message
Applications
- High-bay production shops with machines;
- Small- and medium-size warehouses;
- Repairs shops;
- Loading/ unloading shops;
- Open-air spaces and platforms.
Main features
- Light weight;
- Powder-coated aluminium housing for stringent environments;
- Water-, vapour- and dust-proof;
- Low total cost of ownership;
- Energy efficient;
- Long lifetime;
- Adjustable mounting height.
| Power | 155W |
| Voltage / Frequency | 176-276V / 50Hz |
| Voltage | 100-276V* |
| Dimensions, LхWхH | 762x137x128 mm |
| Power factor | >0.95 |
| Luminous flux @ | |
| 4,000 К | 20,700 lm |
| 5,000 К | 20,700 lm |
| Efficacy | 133 lm/W |
| Light distribution diagrams | wide(asymmetric), deep, cosine |
| CRI, Ra | 70, 80, 90 |
| Number of LEDs | 72 |
| Ingress protection | IP67 |
| Operating temperatures | -45°С to +50°С |
| Luminaire lifecycle | 50,000 hrs |
| Electrical Safety Classification | I,II |
| Wire section | 3х0.75mm² |
| Weight ntw/gross | 5.3kg / 5.8kg |
| Individual package | 814х130х120 mm |
| * optionally (on request of customer) |

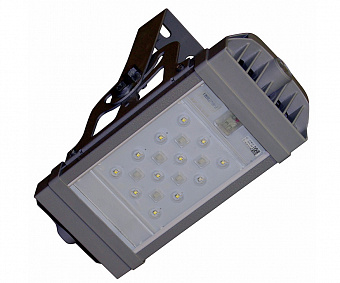

Industrial LED Luminaire 27W (INDUSTRY.3)
Product code: INDUSTRY.3-030-112
| Power | 27W |
|
Luminous flux @ 4,000К |
3,400 |
|
Luminous flux @ 5.000К |
3,400 |
| Efficacy | 125lm/W |
| Ingress protection | IP67 |

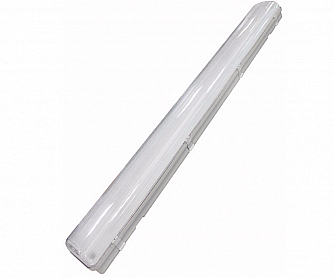

Industrial LED Batten 32W (INDUSTRY.P)
Product code: INDUSTRY.Р 32
|
Power |
32W |
|
Luminous flux @ 4,000К |
3,000 |
|
Luminous flux @ 5,000К |
3,050 |
| Efficacy | 95lm/W |
| Ingress protection | IP65 |

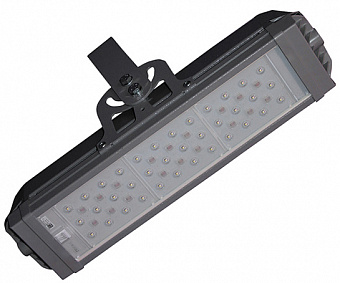

Industrial LED Luminaire 80W (INDUSTRY.3)
Product code: INDUSTRY.3-085-136
|
Power |
80W |
|
Luminous flux @ 4,000-6,000К |
10,400 |
|
Luminous flux @ 3.000К |
10,000 |
| Efficacy | 130lm/W |
| Ingress protection | IP67 |
