Industrial LED Batten 32W (INDUSTRY.P)
Product code: INDUSTRY.Р 32
Power |
32W |
Luminous flux @ 4,000К |
3,000 |
Luminous flux @ 5,000К |
3,050 |
Efficacy | 95lm/W |
Ingress protection | IP65 |

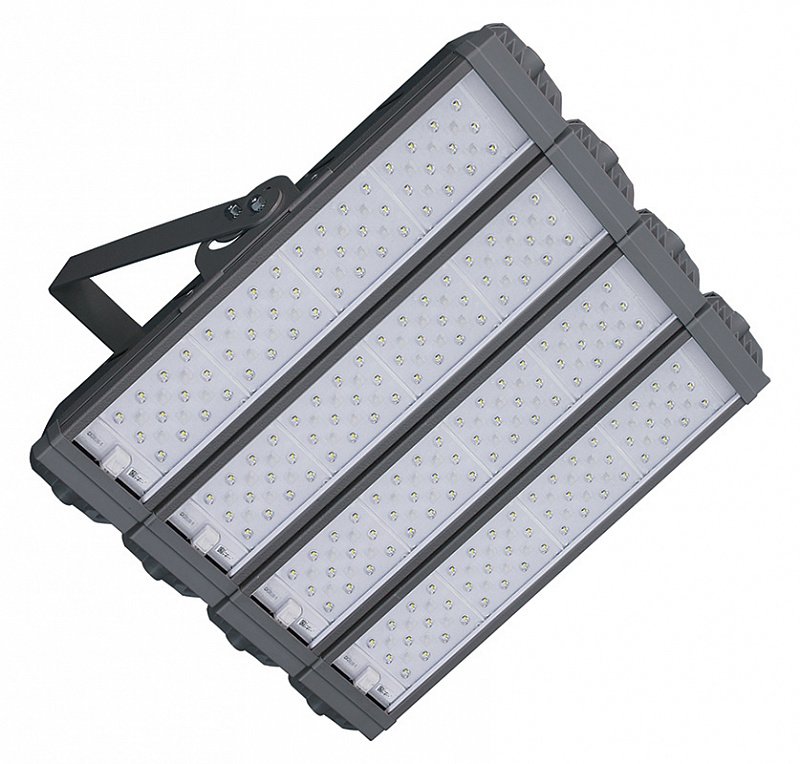

Power |
420W |
Luminous flux @ 4,000К |
54,400 |
Luminous flux @ 5.000К |
54,400 |
Efficacy | 130lm/W |
Ingress protection | IP67 |
Power | 420W |
Voltage / Frequency | 176-276V/ 50Hz |
Voltage | 100-276V* |

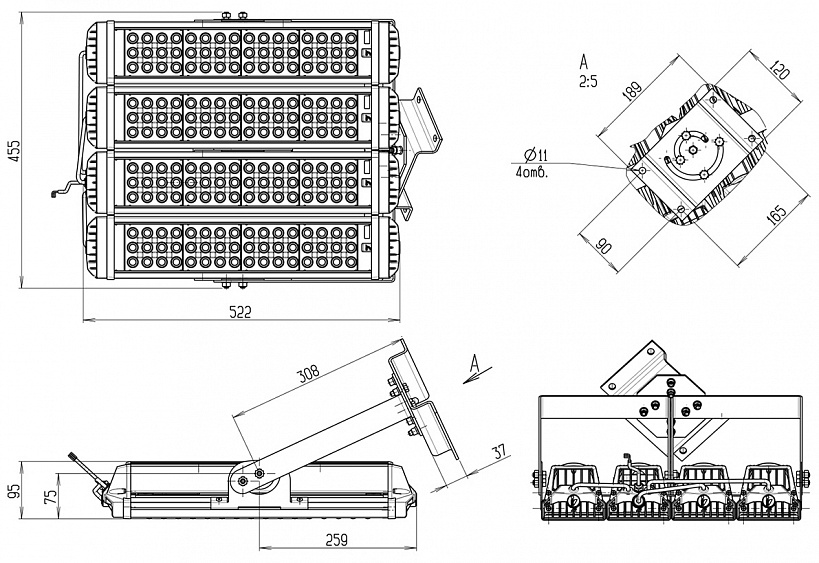

Dimensions, LхWхH | 522x455x138 mm |
Power factor | >0.95 |
Luminous flux @ | |
4,000 К | 54,400 lm |
5,000 К | 54,400 lm |
Efficacy | 130 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 192 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I,II |
Wire section | 3х0.75mm² |
Weight ntw/gross | 17.5kg / 19.1kg |
Individual package | 535х480х150 mm |
* optionally (on request of customer) |
Power |
32W |
Luminous flux @ 4,000К |
3,000 |
Luminous flux @ 5,000К |
3,050 |
Efficacy | 95lm/W |
Ingress protection | IP65 |
Power |
52W |
Luminous flux @ 4,000К |
4,700 |
Luminous flux @ 5,000К |
4,750 |
Efficacy | 91lm/W |
Ingress protection | IP65 |
Power |
205W |
Luminous flux @ 4,000К |
27,500 |
Luminous flux @ 5.000К |
27,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
15W |
Luminous flux @ 4,000 |
1,600 |
Efficacy | 106lm/W |
Ingress protection | IP66 |
