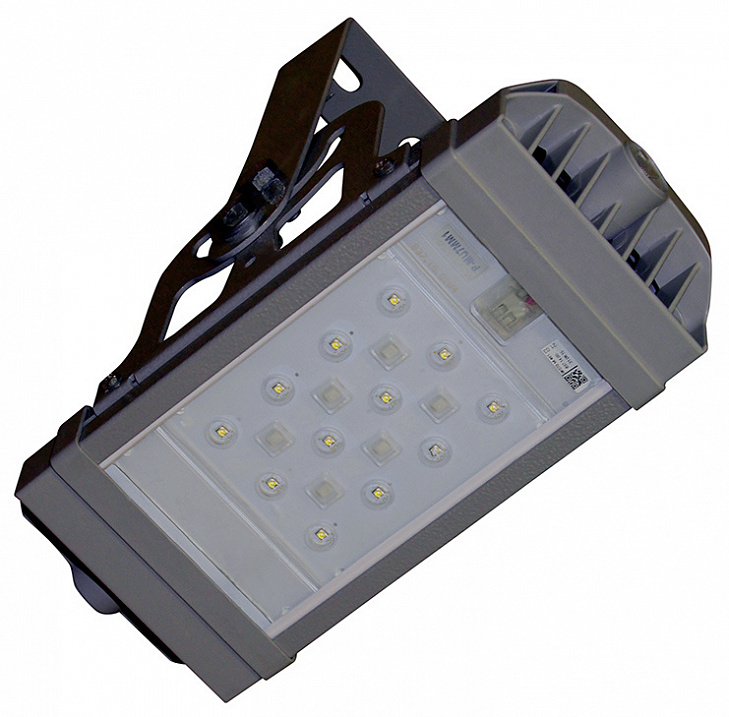

Industrial LED Batten 52W (INDUSTRY.P)
Product code: INDUSTRY.P52
Power |
52W |
Luminous flux @ 4,000К |
4,700 |
Luminous flux @ 5,000К |
4,750 |
Efficacy | 91lm/W |
Ingress protection | IP65 |
Power | 14W |
Luminous flux @ 4,000К |
1,800 |
Luminous flux @ 5.000К |
1,800 |
Efficacy | 128lm/W |
Ingress protection | IP67 |
Main features
Power | 14W |
Voltage / Frequency | 176-276V / 50Hz |
Voltage | 100-276V* |

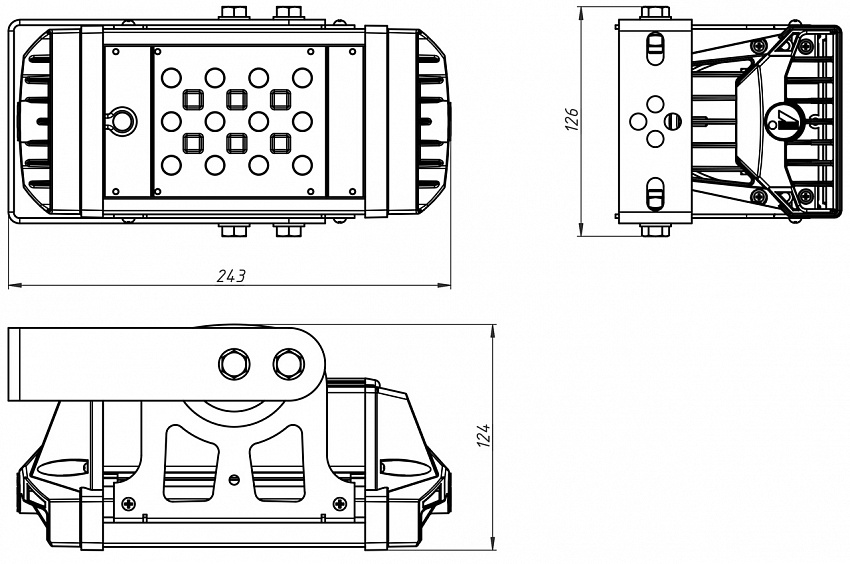

Dimensions, LхWхH | 243х126х124 mm |
Power factor | ≥0.95 |
Luminous flux @ | |
4,000 К | 1,800 lm |
5,000 К | 1,850 lm |
Efficacy | 128 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 12 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I,II |
Wire section | 3х0.75mm² |
Weight ntw/gross | 1.5kg / 1.8kg |
Individual package | 250х135х133 mm |
* optionally (on request of customer) |
Power |
52W |
Luminous flux @ 4,000К |
4,700 |
Luminous flux @ 5,000К |
4,750 |
Efficacy | 91lm/W |
Ingress protection | IP65 |
Power |
130W |
Luminous flux @ 4,000К |
17,500 |
Luminous flux @ 5.000К |
17,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
80W |
Luminous flux @ 4,000-6,000К |
10,400 |
Luminous flux @ 3.000К |
10,000 |
Efficacy | 130lm/W |
Ingress protection | IP67 |

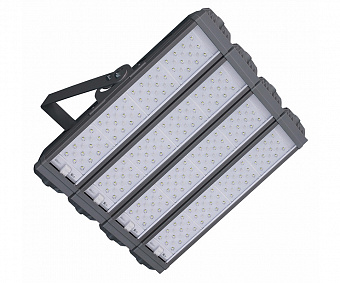

Power |
420W |
Luminous flux @ 4,000К |
54,400 |
Luminous flux @ 5.000К |
54,400 |
Efficacy | 130lm/W |
Ingress protection | IP67 |
