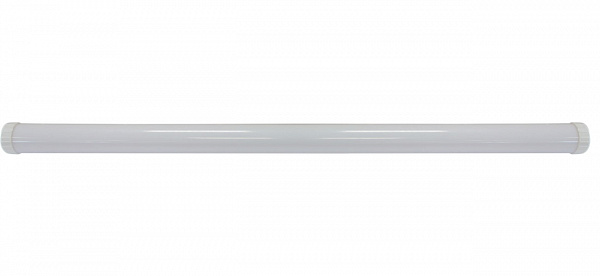

Industrial LED 25W (INDUSTRY.T)

Industrial LED 25W (INDUSTRY.T)
Product code: INDUSTRY.T-120-101
Power
25W
Luminous flux @ 4,000
 3,200
Efficacy 128lm/W
Ingress protection IP66
Luminaire without dimming
Full description
Get a quote
Need help? Send us a message

Applications

  • Indoor and outdoor;
  • Environments with high levels of dust and vapours:
    • production shops;
    • warehouses;
    • hangars;
    • storage facilities;
    • car parks and sheds;
    • car washes, etc.

Main features

  • Modular design with 0.5m modules;
  • Every individual module is AC powered and dimmed on a stand-alone basis;
  • Surge protection;
  • Over-temperature protection over 85˚С;
  • Lower power consumption;
  • UV-, acid- and alkali-resistant diffuser;
  • P66;
  • Light weigh for installation on wire ropes, cable trays, etc.
  • Water-washable;
  • Low-cost dimming system;
  • Class II Electrical Safety;
Power 25W
Voltage / Frequency 176-276V/ 50Hz
Dimensions, ØxL, 58х1200 mm
Power factor >0,92
Luminous flux @ 4,000 К 3 200 lm
Efficacy 128 lm/W
Light distribution diagram 90x110º «D» (cosine)
CRI, Ra 70, 80, 90
Ingress protection IP66
Operating temperatures -45°С to +45°С
Luminaire lifecycle 50,000 hrs
Electrical Safety Classification II
Wire section 2х0.75mm²
Weight 1.1kg

PC extruded LED fixtures come in different lengths from 0.3 to 3 m and wattages from 5 to 150W. Luminaires can be built into lines.

Opal diffuser guarantees comfortable light.

IP65 provided dust and water protection.

Colour temperature customisation:

  • 2,700 - 3,400 К (warm light)
  • 3,500 - 4,600 К (neutral light)
  • 4,700 - 6,500 К (cold light)

Customisation

  • Colour temperature (3,000-5,000K)
  • Length up to 3 m.
