Industrial LED Luminaire 14W (INDUSTRY.3)
Product code: INDUSTRY.3-018-112
Power | 14W |
Luminous flux @ 4,000К |
1,800 |
Luminous flux @ 5.000К |
1,800 |
Efficacy | 128lm/W |
Ingress protection | IP67 |
Power |
420W |
Luminous flux @ 4,000К |
54,400 |
Luminous flux @ 5.000К |
54,400 |
Efficacy | 130lm/W |
Ingress protection | IP67 |
Power | 420W |
Voltage / Frequency | 176-276V/ 50Hz |
Voltage | 100-276V* |

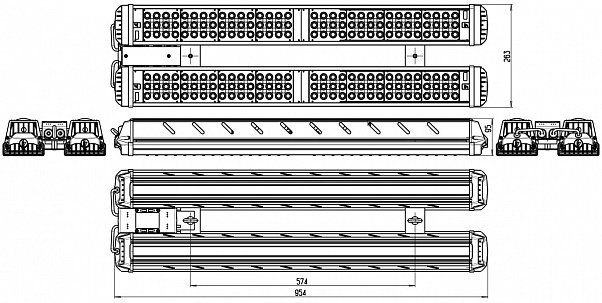

Dimensions, LхWхH | 970x265x100 mm |
Power factor | >0.95 |
Luminous flux @ | |
4,000 К | 54,400 lm |
5,000 К | 54,400 lm |
Efficacy | 130 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 192 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I |
Wire section | 3х0.75mm² |
Weight ntw/gross | 12.4kg / 13.5kg |
Individual package | 984х273х139 mm |
* optionally (on request of customer) |
Power | 14W |
Luminous flux @ 4,000К |
1,800 |
Luminous flux @ 5.000К |
1,800 |
Efficacy | 128lm/W |
Ingress protection | IP67 |
Power |
155W |
Luminous flux @ 4,000К |
20,700 |
Luminous flux @ 5.000К |
20,700 |
Efficacy | 133lm/W |
Ingress protection | IP67 |
Power |
255W |
Luminous flux @ 4,000К |
34,500 |
Luminous flux @ 5.000К |
34,500 |
Efficacy | 135lm/W |
Ingress protection | IP67 |
Power |
155W |
Luminous flux @ 4,000К |
20,700 |
Luminous flux @ 5.000К |
20,700 |
Efficacy | 133lm/W |
Ingress protection | IP67 |
