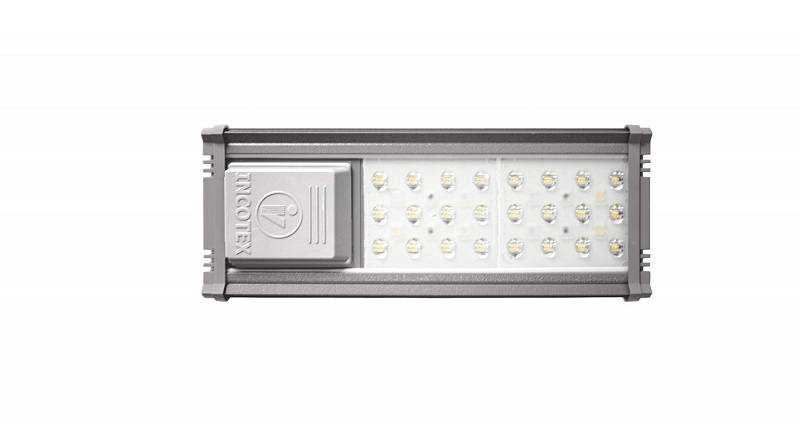

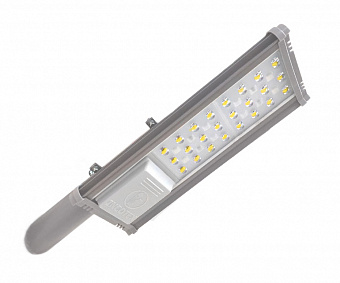

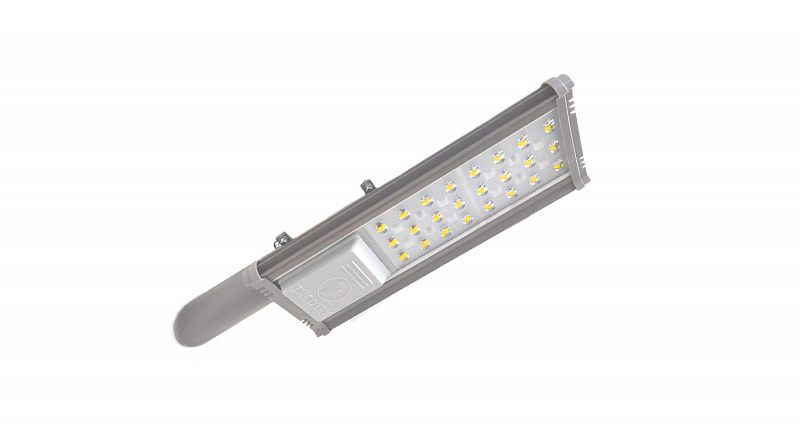

Road LED Luminaire70W (miniMAG10.2-70)
Product code: miniMAG10.2-70
| Power |
70W |
|
| Luminous flux @ 4,000 К | 8,700lm | |
| Efficacy | 124lm/W | |
|
Ingress protection |
IP66 | |
Need help? Send us a message
Description
Elegant, lightweight luminaires are designed for lighting roads of categories B and C, courtyard areas, open spaces, etc. The luminaires are based on LED clusters with an integrated driver on a shared board. The board is hermetically sealed by group lenses and the cover of the driver compartment, mounted on a lightweight aluminum profile with low thermal resistance. The luminaires are equipped with Zhaga connectors and, as an option, a control system modem.
Features
- Affordable version of a street luminaire with a lightweight body
- Unique design with integrated driver
- Overvoltage protection (≥ 300 V)
- Lightning protection 4 kV "line-to-line"
- Power stabilization
- Thermal stabilization
- Low percent flicker
Custom-made Versions
- CRI: 80
- CCT: K 3,000, 5,000
- Management: PWM, modem
| Power | 70W |
| Voltage / Frequency | 230V / 50Hz |
| Luminous flux @ 4,000К | 8,700 lm |
| Efficacy | 124 lm/W |
| CRI, Ra | >70 |
| Number of LEDs, pcs | 24 |
| Ingress protection | IP65 |
| Percent Flicker | ≤ 5% |
| Power factor | ≥0,97 |
| Light distribution | Direct |
| Mounting diameter | 48, 60 mm |
| Dimensions, LхWхH | 230x126x34 mm |
| Individual packaging | 240х160х40 mm |
| Weight ntw | 0.62 kg |
| Electrical Safety Classification | II |
| Standard colour of luminaire | RAL 7036 |
| Light intensity distribution curve | Wide |
| Operating temperatures | -55°С to +40°С |
| Luminaire lifecycle | >50,000 hrs |
