Road LED Luminaire 80W (MAG3)
Product code: MAG3-085-136
|
Power |
80W |
|
|
Luminous flux @ 4,000 К |
10,000lm | |
|
Luminous flux @ 5,000 К |
10,000lm | |
| Efficacy | 125lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |

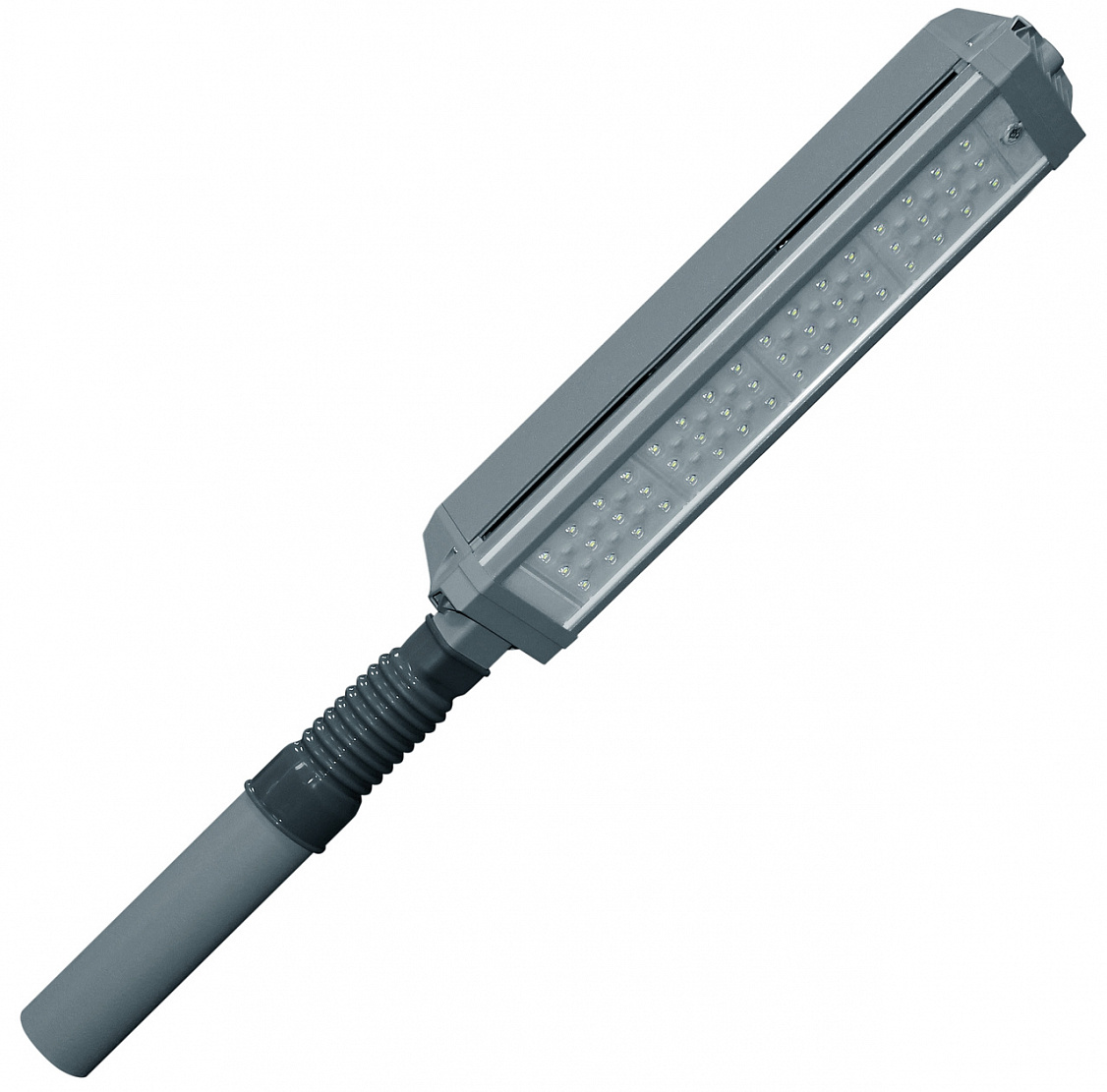

Road LED Luminaire 105W (MAG3)
Product code: MAG3-105-148
|
Power |
105W |
|
| Luminous flux @ 4,000 К | 13,600lm | |
| Luminous flux @ 5,000 К | 13,600lm | |
| Efficacy | 130lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Need help? Send us a message
Main features
- Robust light-weight powder-coated aluminium housing;
- Weather resistant (UV, moisture protection).
Replacement for mercury and sodium luminaires
- 6-7 times longer life with lumen maintenance.
Applications
- Roads of A category;
- Squares and parks;
- Open-air sports and playgrounds;
- Transport infrastructure.
Customization
- 2,700 - 6,500 K CCT
- Different number of LEDs, each time divisible by 12
- Pole diameter 60 & 76 mm
- Different housing colour
| Power | 105W |
| Voltage / Frequency | 176-264V/ 50Hz |
| Voltage | 100-276V* |

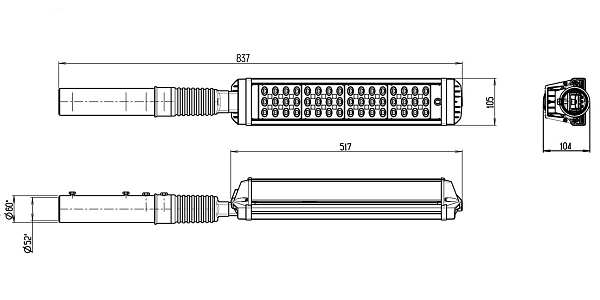

| Dimensions, LхWхH | 837х105х104 mm |
| Power factor | >0,97 |
| Luminous flux @ | |
| 4,000 К | 13,600 lm |
| 5,000 К | 13,600 lm |
| Efficacy | 130lm/W |

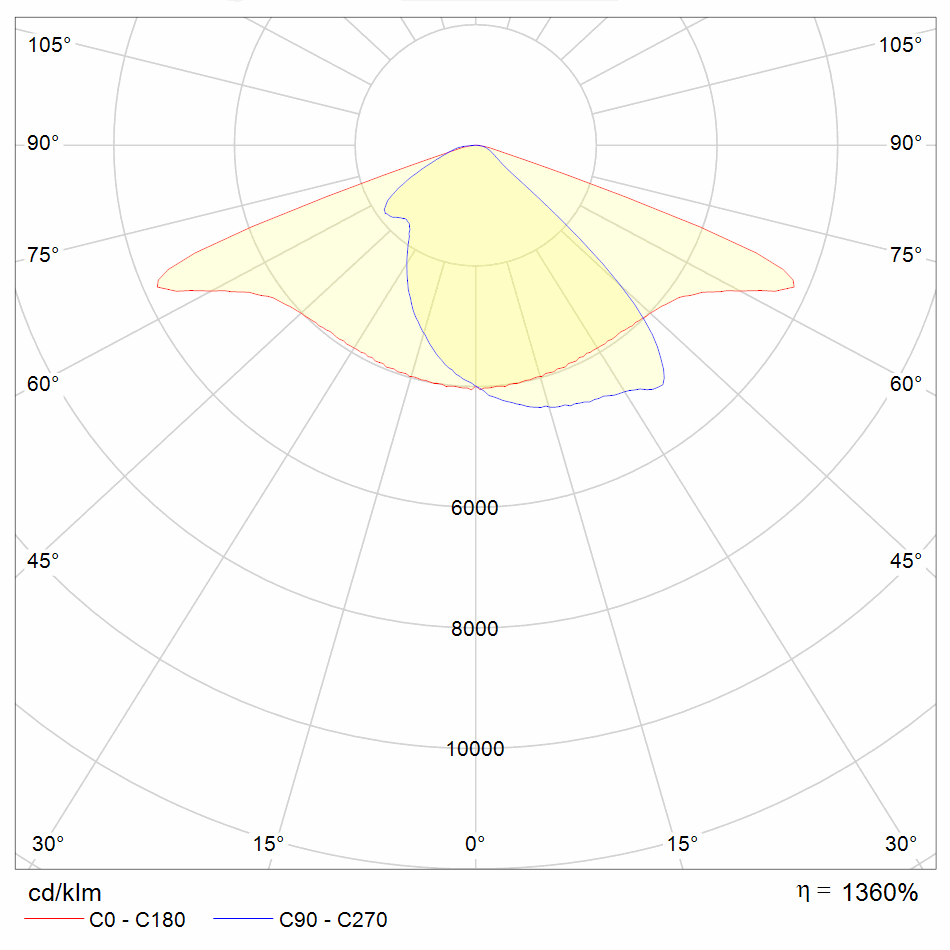

| Light distribution diagrams, cd/1000 lm | wide (asymmetric), cosine, deep |
| CRI, Ra | 70, 80, 90 |
| Number of LEDs, pcs | 48 |
| Ingress protection | IP67 |
| IK code | IK10 |
| Operating temperatures | -45°С to +50°С |
| Luminaire lifecycle | >50,000 hrs |
| LEDs lifecycle | >100,000 hrs |
| Electrical Safety Classification | I,II |
| Operating conditions | F |
| Wire section | 3х0,75 mm2 |
| Mounting diameter | 48, 60 mm |
| Weight ntw/gross | 5,3kg / 5,5kg |
| Individual packaging | 918х149х115 mm |
| * optionally (on request of customer) |
Road LED Luminaire 14W (MAG3)
Product code: MAG3-014-112
|
Power |
14W |
|
| Luminous flux @ 4,000 К | 1,800lm | |
| Luminous flux @ 5,000 К | 1,800lm | |
| Efficacy | 128lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Road LED Luminaire60W (miniMAG10.2-60)
Product code: miniMAG10.2-60
| Power |
60W |
|
| Luminous flux @ 4,000 К | 7,500lm | |
| Efficacy | 125lm/W | |
|
Ingress protection |
IP66 | |
Road LED Luminaire45W (miniMAG10.1-45)
Product code: miniMAG10.1-45
| Power |
45W |
|
| Luminous flux @ 4,000 К | 5,600lm | |
| Efficacy | 124lm/W | |
|
Ingress protection |
IP66 | |
