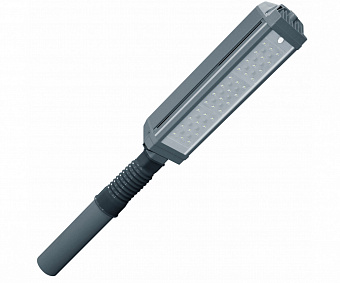

Road LED Luminaire 40W (MAG3)
Product code: MAG3-045-112
|
Power |
40W |
|
| Luminous flux @ 4,000 К | 5,000lm | |
|
Luminous flux @ 3,000 К |
5,000lm | |
| Efficacy | 126lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |

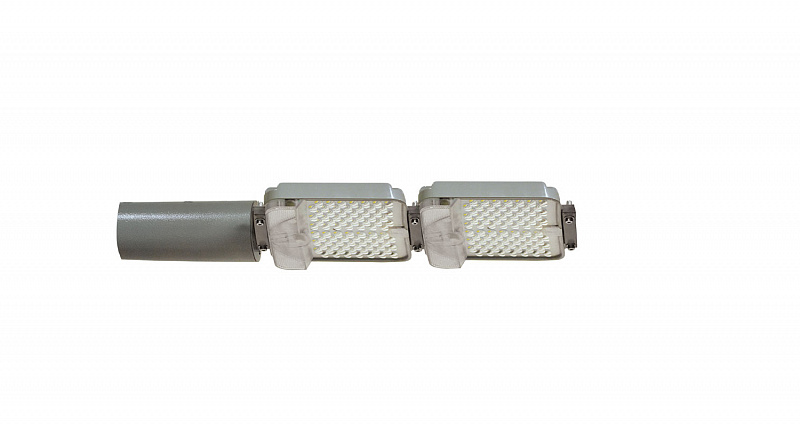

Road LED Luminaire80W (KASKAD-80)
Product code: KASKAD-80
|
Power |
80W |
|
| Luminous flux @ 4,000 К | 9,600lm | |
| Efficacy | 120lm/W | |
|
Ingress protection |
IP65 | |
Need help? Send us a message
Description

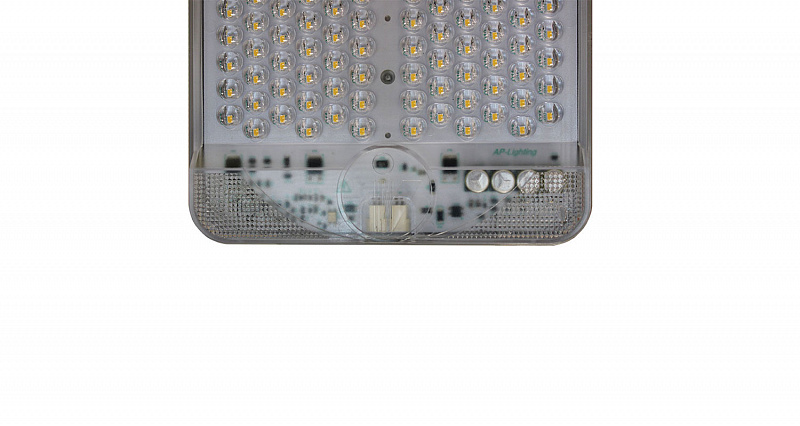

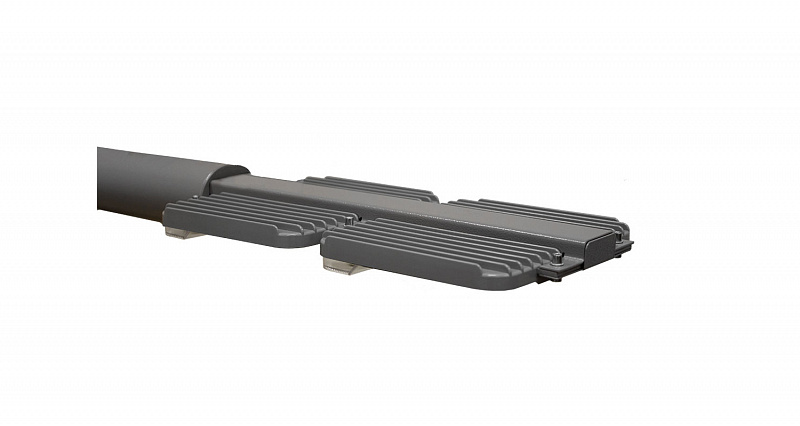

An elegant, lightweight luminaire is designed for lighting roads of categories B and C, courtyard areas, open spaces, etc. It is made according to a modular scheme: each module is a LED cluster with an integrated driver. Thanks to its high efficiency, the cluster does not need an additional aluminum heat sink, therefore the body of the module is made of UV- and impact-resistant polycarbonate and protects against environmental exposure. This solution made it possible to significantly reduce the weight and cost of luminaires of this series.
Features
- Low weight: the body is made of high-strength plastic
- Unique modular design with integrated driver
- Overvoltage protection (≥ 300 V)
- Lightning protection 4 kV "wire-wire"
- Power stabilization
- Thermal stabilization
- Low percent flicker
Custom-made Versions
- CRI: 80
- CCT: K 3,000, 5,000
- IP: 66
| Power | 80W |
| Voltage / Frequency | 230V / 50Hz |
| Luminous flux @ 4,000К | 9,600 lm |
| Efficacy | 120 lm/W |
| CRI, Ra | >70 |
| Number of LEDs, pcs | 84*2 |
| Ingress protection | IP65 |
| Percent Flicker | ≤ 5% |
| Power factor | ≥0,99 |
| Light distribution | Direct |
| Mounting diameter | 48, 60 mm |
| Dimensions, LхWхH | 361x180x64 mm |
| Weight ntw | 2.1 kg |
| Electrical Safety Classification | II |
| Standard colour of luminaire | RAL 7036 |
| Light intensity distribution curve | Wide |
| Operating temperatures | -45°С to +45°С |
| Luminaire lifecycle | >50,000 hrs |
