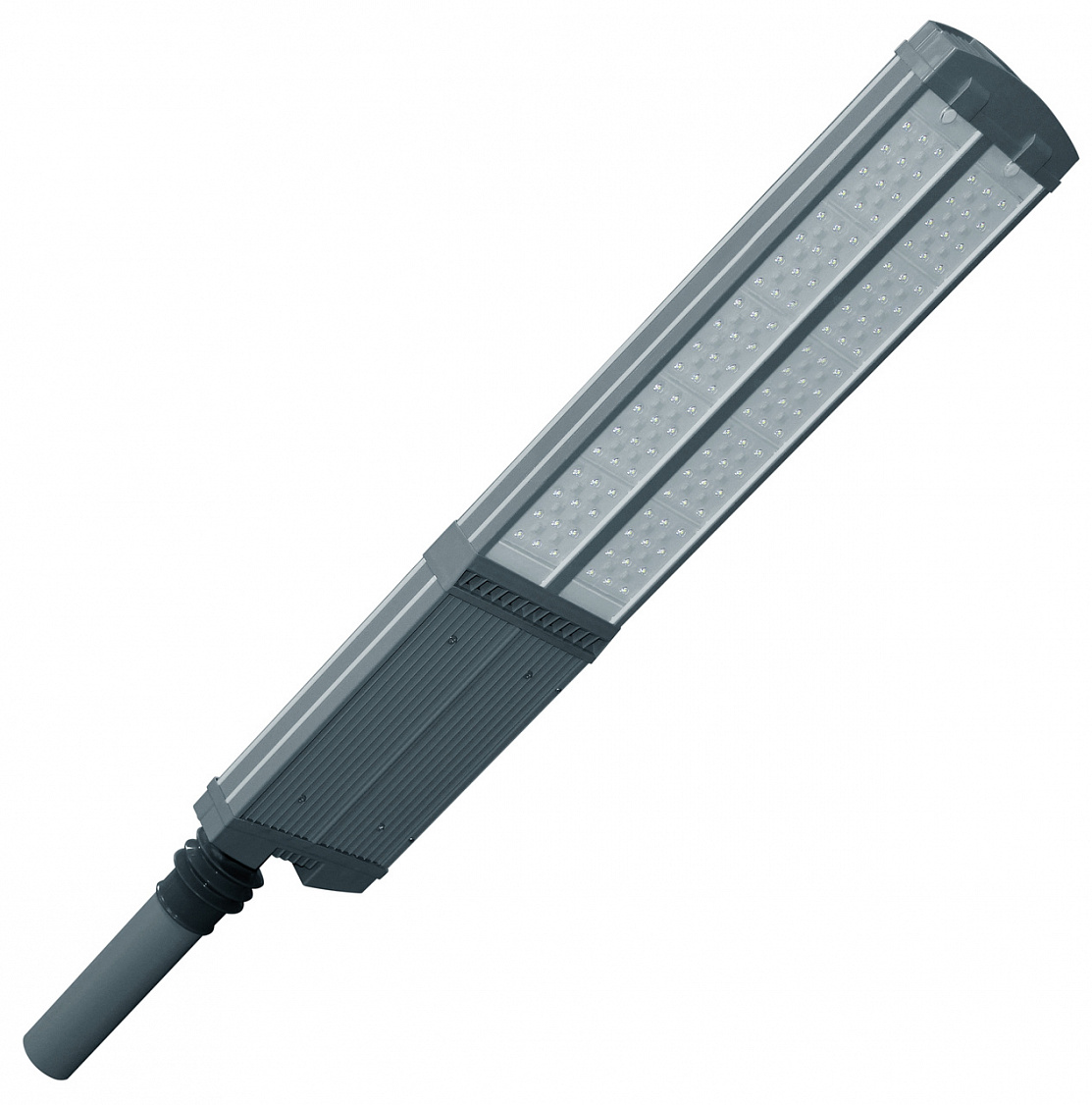

Road LED Luminaire 255W (MAG4)

Road LED Luminaire 255W (MAG4) Road LED Luminaire 255W (MAG4)
Product code: MAG4-270-260
Power
 255W
Luminous flux @ 4,000 К 34,500lm
Luminous flux @ 5,000 К 34,500lm
Efficacy 135lm/W
Ingress protection  IP67
IK code IK10
Full description
Get a quote
Need help? Send us a message

Replacement for 400W sodium and 700W mercury luminaire

  • 1.5-3 times less power consumption;
  • High efficacy 120 lm/W;
  • Long lifespan with 5-10 times better lumen maintenance;
  • No specific requirements for disposal;
  • Operability at high mains instability.

Applications

  • Roads of A, B and C categories;
  • Large open spaces.

Customization

  • 2,700 - 6,500 K CCT
  • Different number of LEDs, each time divisible by 12
  • Pole diameter 60 & 76 mm
  • Different housing colour
Power 255W
Voltage / Frequency 176-264V/ 50Hz
Voltage 100-276V*

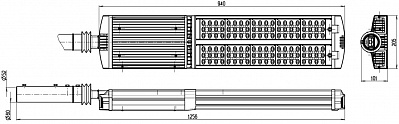

Dimensions, LхWхH 1,160х205х101 mm
Power factor >0,97
Luminous flux @
4,000 К 34,500 lm
5,000 К 34,500 lm
Efficacy 135lm/W
Light distribution diagrams, cd/1000 lm wide (asymmetric), cosine, deep
CRI, Ra 70, 80, 90
Number of LEDs, pcs 120
Ingress protection IP67
IK code IK10
Operating temperatures -45°С to +50°С
Luminaire lifecycle >50,000 hrs
LEDs lifecycle >100,000 hrs
Electrical Safety Classification I,II
Operating conditions F 1 (large geographical areas with cold climate, outdoor application)
Wire section 3х0,75 mm²
Mounting diameter 48, 60 mm
Weight ntw/gross 10,0kg / 10,4kg
Individual packaging 1,292х226х116 mm
* optionally (on request of customer)
Road LED Luminaire 158W (MAG4)

Road LED Luminaire 158W (MAG4)
Product code: MAG4-160-236
Power
 155W
Luminous flux @ 4,000 К 20,700lm
Luminous flux @ 5,000 К
 20,700lm
Efficacy
 135lm/W
Ingress protection
 IP67
IK code  IK10
Road LED Luminaire 105W (MAG3)

Road LED Luminaire 105W (MAG3)
Product code: MAG3-105-148
Power
 105W
Luminous flux @ 4,000 К 13,600lm
Luminous flux @ 5,000 К 13,600lm
Efficacy  130lm/W
Ingress protection
 IP67
IK code IK10
Road LED Luminaire 14W (MAG3)

Road LED Luminaire 14W (MAG3)
Product code: MAG3-014-112
Power
 14W
Luminous flux @ 4,000 К 1,800lm
Luminous flux @ 5,000 К 1,800lm
Efficacy  128lm/W
Ingress protection
 IP67
 IK code IK10
Road LED Luminaire 54W (MAG3)

Road LED Luminaire 54W (MAG3)
Product code: MAG3-060-124
Power
 54W
Luminous flux @ 4,000 К
 6,800lm
Luminous flux @ 5,000 К
 6,800lm
Efficacy  126lm/W
Ingress protection
 IP67
IK code IK10
