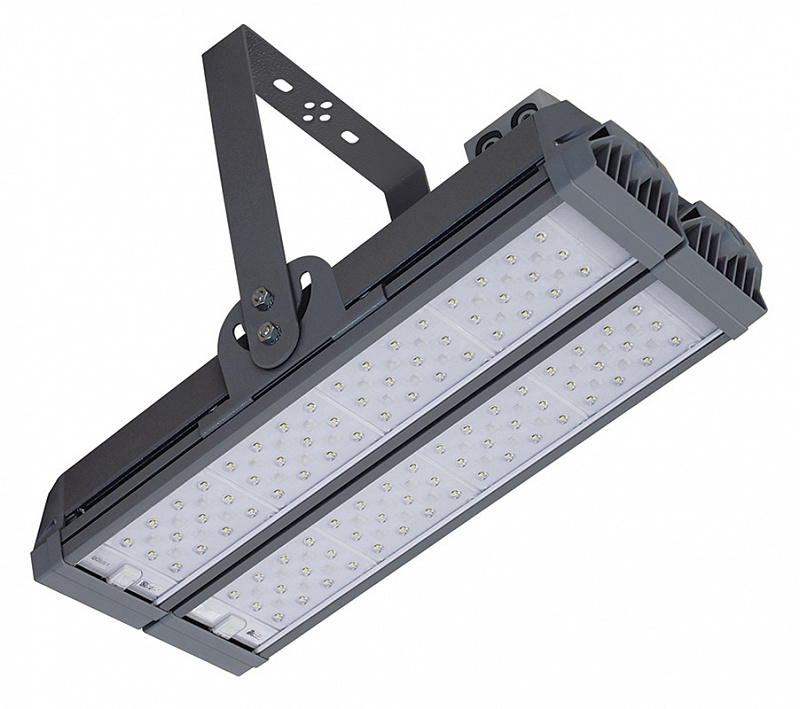

Industrial LED Luminaire 130W (INDUSTRY.3)
Product code: INDUSTRY.3-135-160
Power |
130W |
Luminous flux @ 4,000К |
17,500 |
Luminous flux @ 5.000К |
17,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
205W |
Luminous flux @ 4,000К |
27,500 |
Luminous flux @ 5.000К |
27,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power | 205W |
Voltage / Frequency | 176-276V/ 50Hz |
Voltage | 100-276V* |

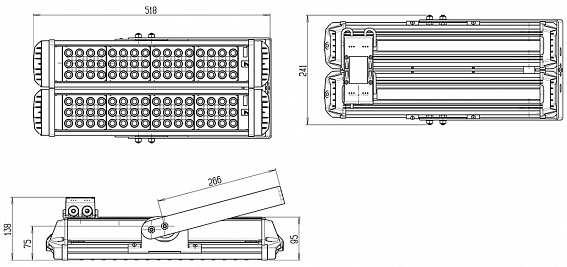

Dimensions, LхWхH | 518x241x138 mm |
Power factor | >0.95 |
Luminous flux @ | |
4,000 К | 27,500 lm |
5,000 К | 27,500 lm |
Efficacy | 134 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 96 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I |
Wire section | 3х0.75mm² |
Weight ntw/gross | 9.0kg / 9.8kg |
Individual package | 535х250х150 mm |
* optionally (on request of customer) |
Power |
130W |
Luminous flux @ 4,000К |
17,500 |
Luminous flux @ 5.000К |
17,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
255W |
Luminous flux @ 4,000К |
34,500 |
Luminous flux @ 5.000К |
34,500 |
Efficacy | 135lm/W |
Ingress protection | IP67 |
Power |
420W |
Luminous flux @ 4,000К |
54,400 |
Luminous flux @ 5.000К |
54,400 |
Efficacy | 130lm/W |
Ingress protection | IP67 |
Power | 40W |
Luminous flux @ 4,000К |
5,000 |
Luminous flux @ 5.000К |
5,000 |
Efficacy | 125lm/W |
Ingress protection | IP67 |
