Industrial LED Batten 44W (INDUSTRY.P)
Product code: INDUSTRY.P44
Power |
44W |
Luminous flux @ 4,00К | 4,200 |
Luminous flux @ 5,00К | 4,250 |
Efficacy | 96lm/W |
Ingress protection | IP65 |
Power |
155W |
Luminous flux @ 4,000К |
20,700 |
Luminous flux @ 5.000К |
20,700 |
Efficacy | 133lm/W |
Ingress protection | IP67 |
Ideal for general and dedicated area lighting at production facilities and in public places.
Main features
Replacement for MH, sodium and mercury luminaires
Power | 155W |
Voltage / Frequency | 176-276V/ 50Hz |
Voltage | 100-276V* |

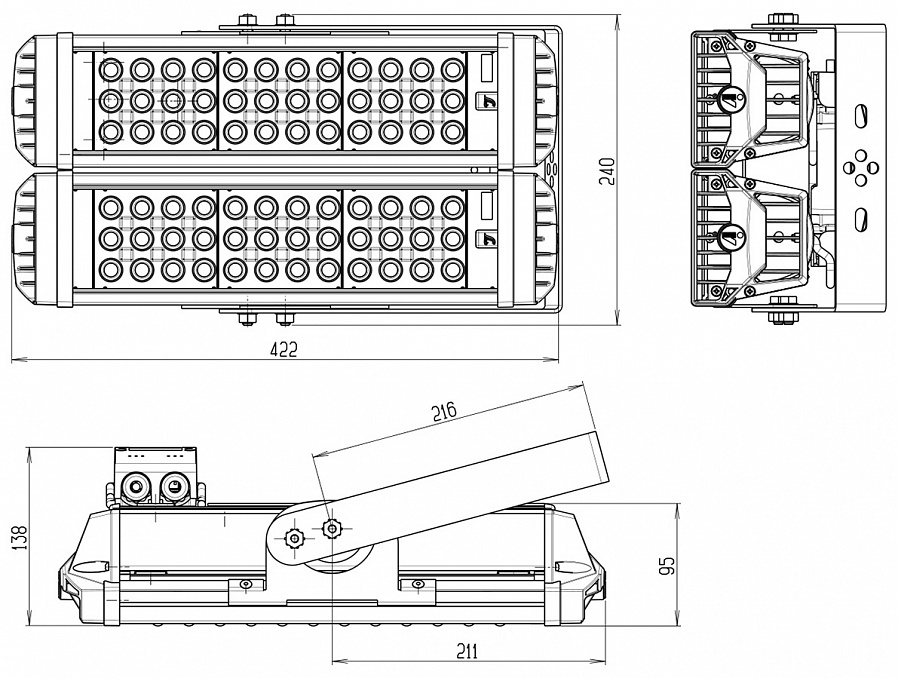

Dimensions, LхWхH | 422х240х138 mm |
Power factor | >0.95 |
Luminous flux @ | |
4,000 К | 20,700 lm |
5,000 К | 20,700 lm |
Efficacy | 133 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 72 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I,II |
Wire section | 3х0.75mm² |
Weight ntw/gross | 7.6kg / 8.3kg |
Individual package | 535х250х150 mm |
* optionally (on request of customer) |
Power |
44W |
Luminous flux @ 4,00К | 4,200 |
Luminous flux @ 5,00К | 4,250 |
Efficacy | 96lm/W |
Ingress protection | IP65 |
Power |
54W |
Luminous flux @ 4,000К |
6,800 |
Luminous flux @ 5.000К |
6,800 |
Efficacy | 126lm/W |
Ingress protection | IP67 |
Power |
105W |
Luminous flux @ 4,000К |
13,800 |
Luminous flux @ 5.000К |
13,800 |
Efficacy | 131lm/W |
Ingress protection | IP67 |
Power |
32W |
Luminous flux @ 4,000К |
3,000 |
Luminous flux @ 5,000К |
3,050 |
Efficacy | 95lm/W |
Ingress protection | IP65 |
