Industrial LED Luminaire 205W Double (INDUSTRY.3)
Product code: INDUSTRY.3-215-248
Power |
205W |
Luminous flux @ 4,000К |
27,500 |
Luminous flux @ 5.000К |
27,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
80W |
Luminous flux @ 4,000-6,000К |
10,400 |
Luminous flux @ 3.000К |
10,000 |
Efficacy | 130lm/W |
Ingress protection | IP67 |

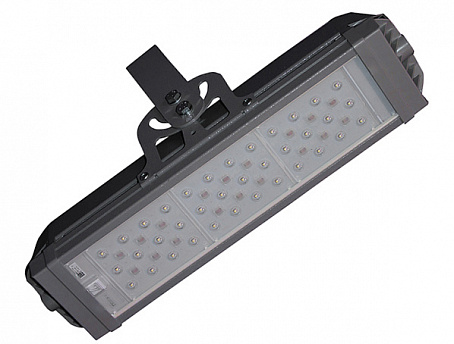

Replacement for MH, sodium and mercury luminaires
Power | 80W |
Voltage / Frequency | 176-276V / 50Hz |
Voltage | 100-276V* |

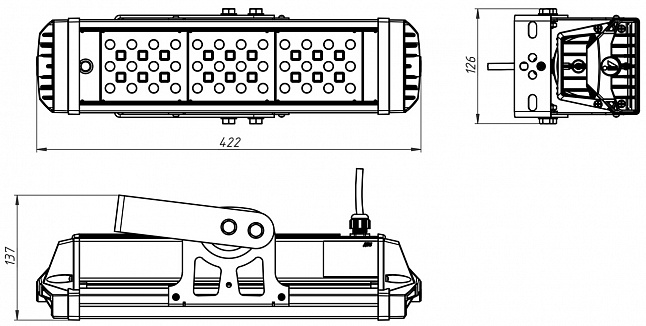

Dimensions, LхWхH | 422х128х137 mm |
Power factor | ≥0.95 |
Luminous flux @ | |
4,000-6,000 К | 10,400 lm |
3,000 К | 10,000 lm |
Efficacy | 130 lm/W |
Light distribution diagrams | wide(asymmetric), deep, cosine |
CRI, Ra | 70, 80, 90 |
Number of LEDs | 36 |
Ingress protection | IP67 |
Operating temperatures | -45°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | I |
Wire section | 3х0.75mm² |
Weight ntw/gross | 3.7kg / 4.0kg |
Individual package | 450х135х144 mm |
* optionally (on request of customer) |
Power |
205W |
Luminous flux @ 4,000К |
27,500 |
Luminous flux @ 5.000К |
27,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
Power |
54W |
Luminous flux @ 4,000К |
6,800 |
Luminous flux @ 5.000К |
6,800 |
Efficacy | 126lm/W |
Ingress protection | IP67 |
Power | 40W |
Luminous flux @ 4,000К |
5,000 |
Luminous flux @ 5.000К |
5,000 |
Efficacy | 125lm/W |
Ingress protection | IP67 |
Power |
205W |
Luminous flux @ 4,000K |
27,500 |
Luminous flux @ 5.000К |
27,500 |
Efficacy | 134lm/W |
Ingress protection | IP67 |
