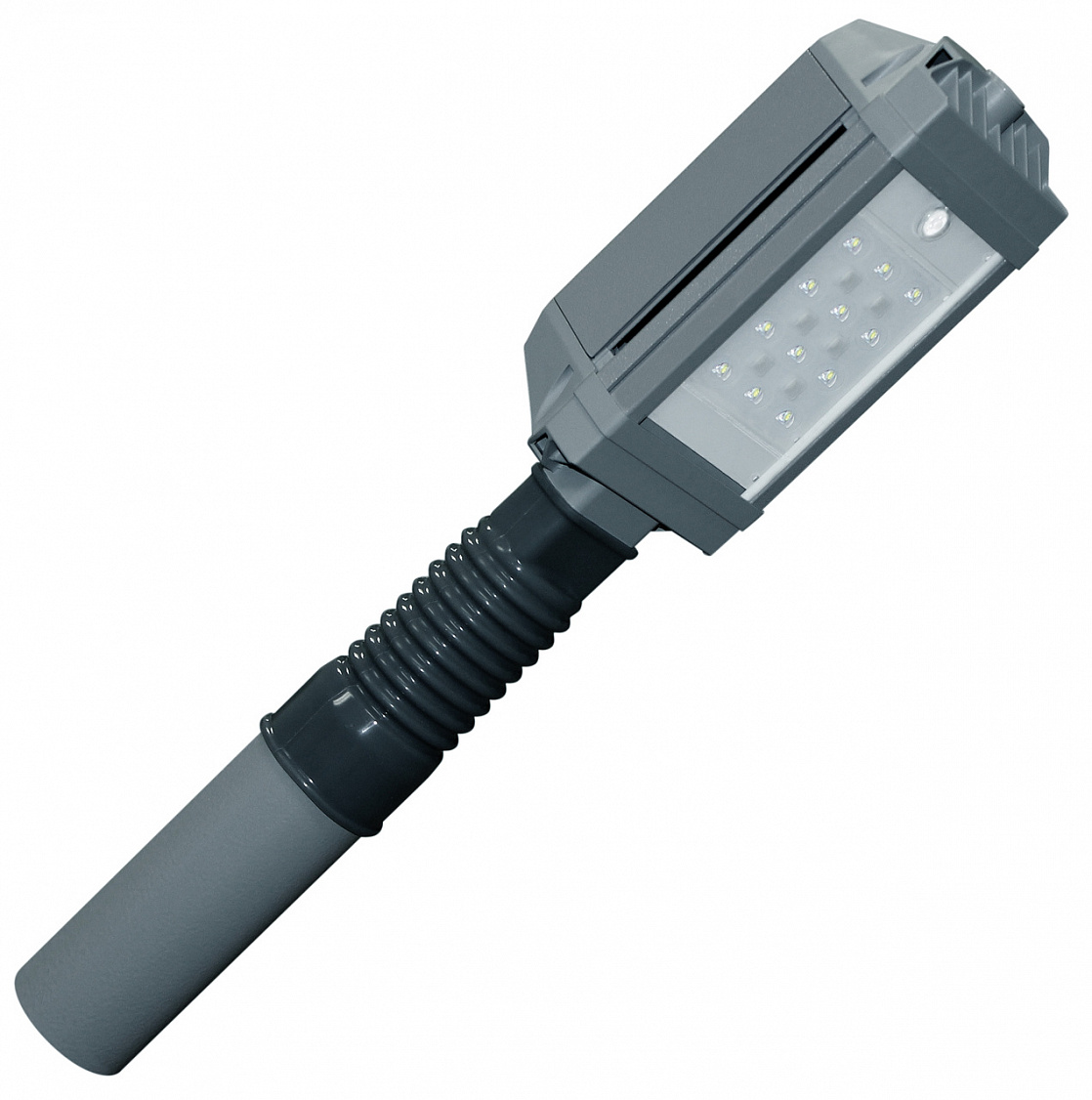

Road LED Luminaire 14W (MAG3)
Product code: MAG3-014-112
|
Power |
14W |
|
| Luminous flux @ 4,000 К | 1,800lm | |
| Luminous flux @ 5,000 К | 1,800lm | |
| Efficacy | 128lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Need help? Send us a message
Replacement for 80W mercury luminaire
- Energy efficient;
- 3 times less power consumption;
- Operability at high mains instability (176-276V);
- High CRI;
- 10 times longer life;
- IP67;
- Unique design.
Applications
- Footpaths in parks and squares;
- Private yards;
- Pavements.
Customization
- 2,700 - 6,500 K CCT
- Different number of LEDs, each time divisible by 12
- Pole diameter 60 & 76 mm
- Different housing colour
| Power | 14W |
| Voltage / Frequency | 176-276V / 50Hz |
| Voltage | 100-276V* |

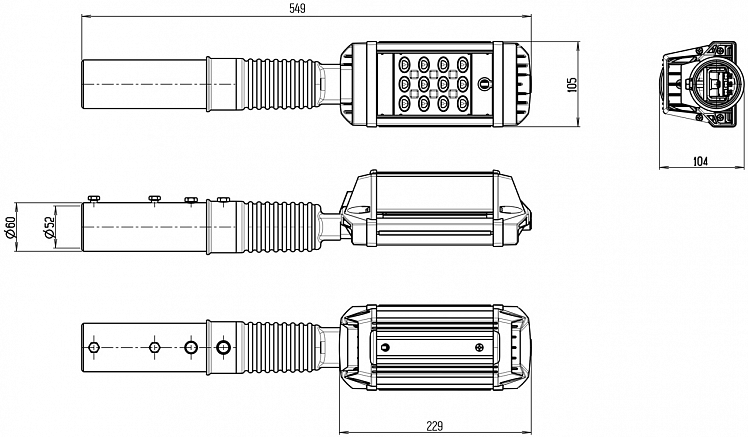

| Dimensions, LхWхH | 549х105х104 mm |
| Power factor | ≥0,97 |
| Luminous flux @ | |
| 4,000 К | 1,800 lm |
| 5,000 К | 1,800 lm |
| Efficacy | 128lm/W |

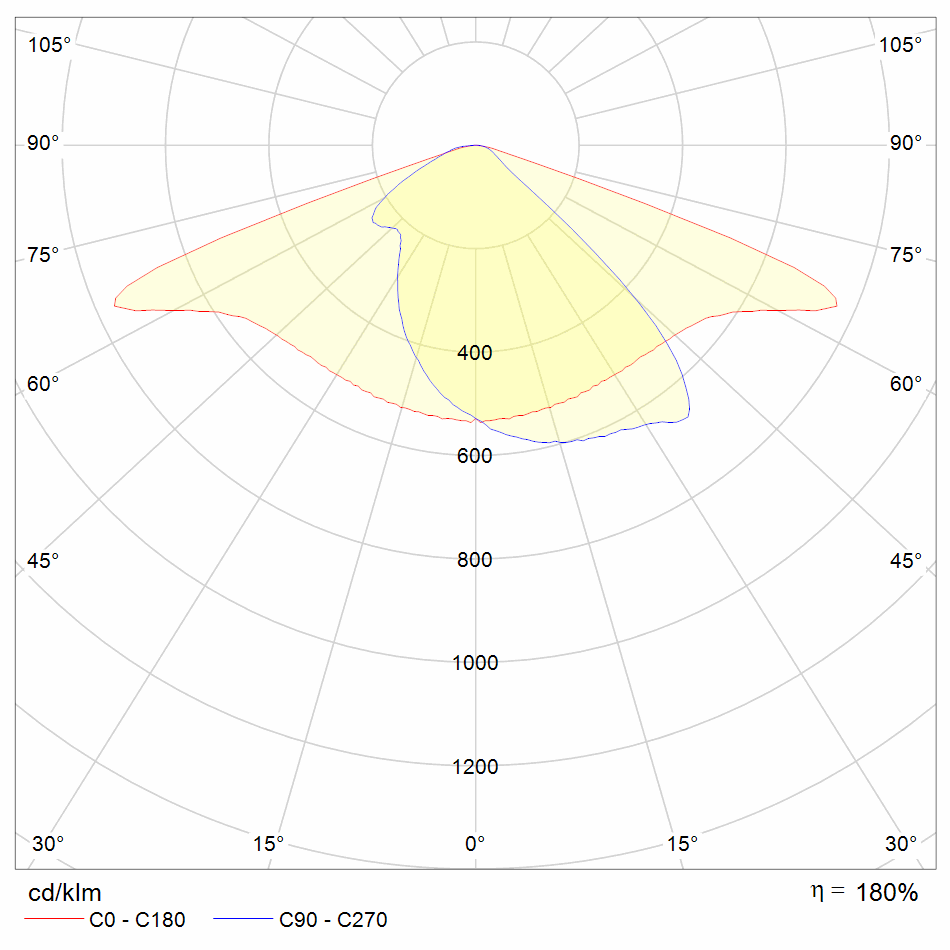

| Light distribution diagrams, cd/1000 lm | wide (asymmetric), cosine, deep |
| CRI, Ra | 70, 80, 90 |
| Number of LEDs, pcs | 12 |
| Ingress protection | IP67 |
| IK code | IK10 |
| Operating temperatures | -45°С to +50°С |
| Luminaire lifecycle | >50,000 hrs |
| LEDs lifecycle | >100,000 hrs |
| Electrical Safety Classification | I,II |
| Operating conditions | F 1 (large geographical areas with cold climate, outdoor application) |
| Wire section | 3х0,75 mm² |
| Mounting diameter | 48, 60 mm |
| Weight ntw/gross | 2,9kg / 3,1kg |
| Individual packaging | 592х120х111 mm |
| * optionally (on request of customer) |
