Road LED Luminaire30W (miniMAG10.1-30)
Product code: miniMAG10.1-30
|
Power |
30W |
|
| Luminous flux @ 4,000 К | 3,900lm | |
| Efficacy | 130lm/W | |
|
Ingress protection |
IP66 | |

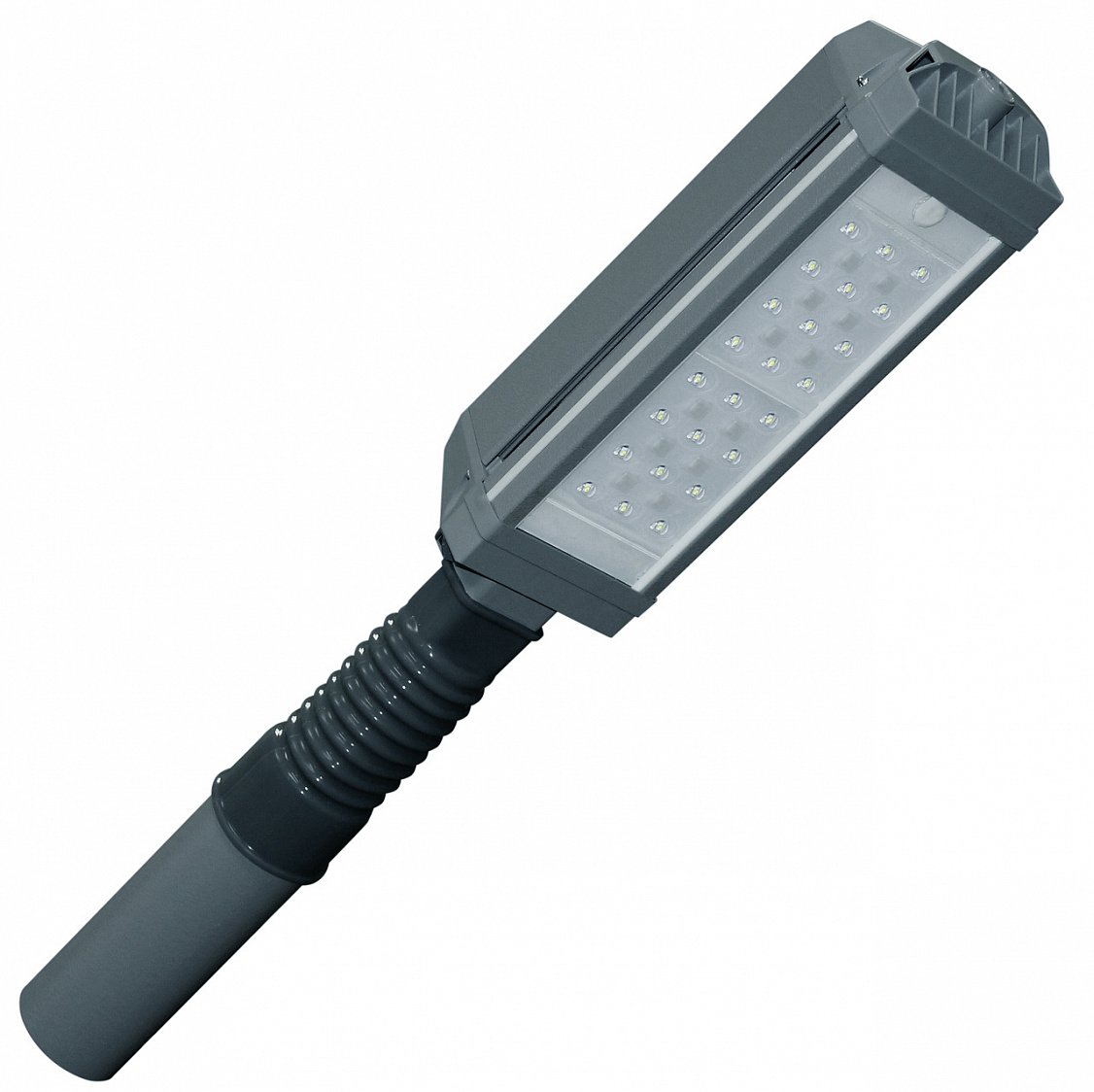

Road LED Luminaire 54W (MAG3)
Product code: MAG3-060-124
|
Power |
54W |
|
|
Luminous flux @ 4,000 К |
6,800lm | |
|
Luminous flux @ 5,000 К |
6,800lm | |
| Efficacy | 126lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Need help? Send us a message
Main features
- Efficiency up to 130 lm/W;
- Long lifespan > 50,000 hrs;
- Light weight;
- Environmentally friendly.
Applications
- Pedestrian areas, e.g. squares and parks, embankments and footpaths;
- Playgrounds;
- School and office buildings surroundings;
- Roofed and open-air parking lots;
- Railway platforms.
Customization
- 2,700 - 6,500 K CCT
- Different number of LEDs, each time divisible by 12
- Pole diameter 60 & 76 mm
- Different housing colour
| Power | 54W |
| Voltage / Frequency | 176-276V / 50Hz |
| Voltage | 100-276V* |
| Dimensions, LхWхH | 645х105х104 mm |
| Power factor | >0,97 |
| Luminous flux @ | |
| 4,000 К | 6,800 lm |
| 5,000 К | 6,800 lm |
| Efficacy | 126lm/W |

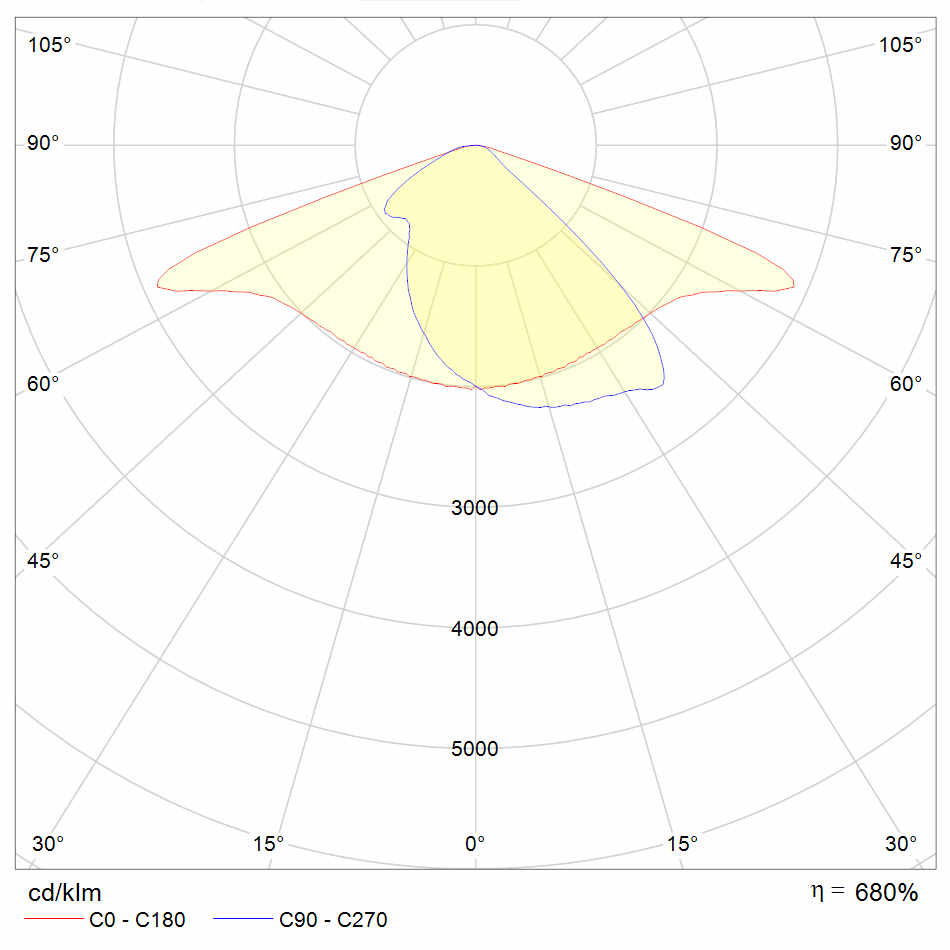

| Light distribution diagrams, cd/1000 lm | wide (asymmetric), cosine, deep |
| CRI, Ra | 70, 80, 90 |
| Number of LEDs, pcs | 24 |
| Ingress protection | IP67 |
| IK code | IK10 |
| Operating temperatures | -45°С to +50°С |
| Luminaire lifecycle | >50,000 hrs |
| LEDs lifecycle | >100,000 hrs |
| Electrical Safety Classification | I,II |
| Operating conditions | F 1 (large geographical areas with cold climate, outdoor application) |
| Wire section | 3х0,75 mm² |
| Mounting diameter | 48, 60 mm |
| Weight ntw/gross | 3,8kg / 4,0kg |
| Individual packaging | 659х149х115 mm |
| * optionally (on request of customer) |
Road LED Luminaire 255W (MAG4)
Product code: MAG4-270-260
|
Power |
255W |
|
| Luminous flux @ 4,000 К | 34,500lm | |
| Luminous flux @ 5,000 К | 34,500lm | |
| Efficacy | 135lm/W | |
| Ingress protection | IP67 | |
| IK code | IK10 | |
Road LED Luminaire 215W (MAG4)
Product code: MAG4-215-248
|
Power |
205W |
|
| Luminous flux @ 4,000 К | 27,500lm | |
| Luminous flux @ 5,000 К | 27,500lm | |
| Efficacy | 131lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Road LED Luminaire40W (KASKAD-40)
Product code: KASKAD-40
|
Power |
40W |
|
| Luminous flux @ 4,000 К | 4,800lm | |
| Efficacy | 120lm/W | |
|
Ingress protection |
IP65 | |
