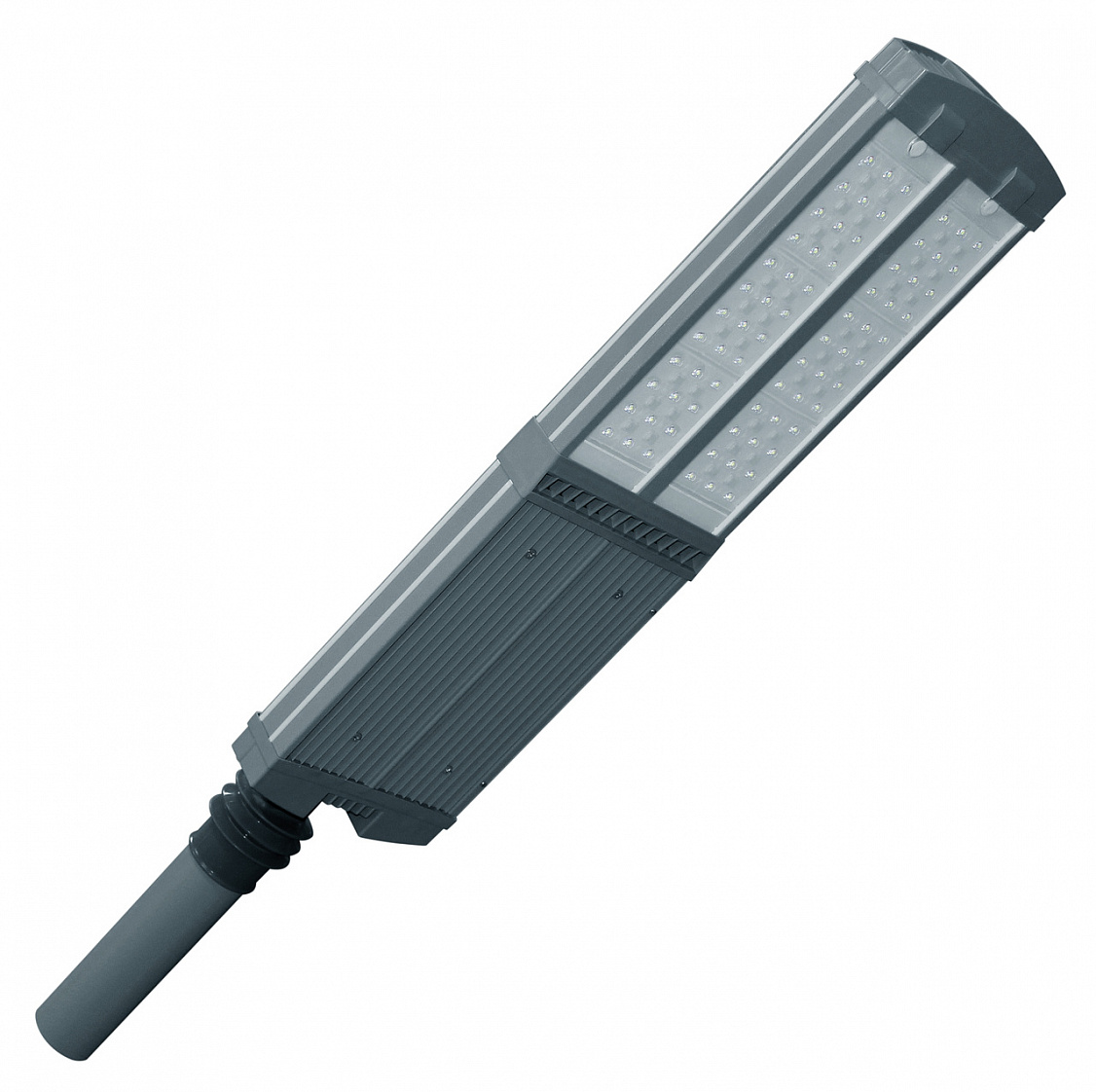

Road LED Luminaire 158W (MAG4)

Road LED Luminaire 158W (MAG4) Road LED Luminaire 158W (MAG4)
Product code: MAG4-160-236
Power
 155W
Luminous flux @ 4,000 К 20,700lm
Luminous flux @ 5,000 К
 20,700lm
Efficacy
 135lm/W
Ingress protection
 IP67
IK code  IK10
Full description
Get a quote
Need help? Send us a message

Main features

  • Unique design
  • Long-lasting 2W LEDs - CREE and Osram Oslon Square
  • Innovative heat sink design for efficient heat dissipation
  • Lifespan up to 100,000 hrs
  • Payback period 1-2 years

Applications

  • Roads of B and C categories;
  • Road junctions and bridges;
  • Streets and squares;
  • Open-air sports pitches;
  • Warehousing and industrial facilities;
  • Transport terminals, tunnels.

Customization

  • 2,700 - 6,500 K CCT
  • Different number of LEDs, each time divisible by 12
  • Pole diameter 60 & 76 mm
  • Different housing colour
Power 155W
Voltage / Frequency 176-276V / 50Hz
Voltage 100-276V*

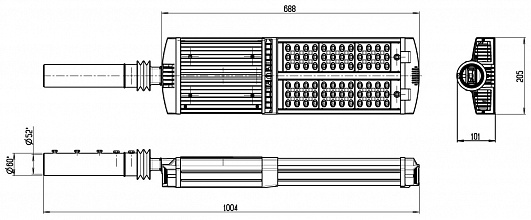

Dimensions, LхWхH 1,004х205х101 mm
Power factor >0,97
Luminous flux @
4,000 К 20,700
5,000 К 20,700
Efficacy 135lm/W
Light distribution diagrams, cd/1000 lm wide (asymmetric), cosine, deep
CRI, Ra 70, 80, 90
Number of LEDs, pcs 72
Ingress protection IP67
lK code IK10
Operating temperatures -45°С to +50°С
Luminaire lifecycle >50,000 hrs
LEDs lifecycle >100,000 hrs
Electrical Safety Classification |,II
Operating conditions F 1 (large geographical areas with cold climate, outdoor application)
Wire section 3х0,75 mm²
Mounting diameter 48, 60 mm
Weight ntw/gross 8,0kg / 8,6kg
Individual packaging 1,102х226х116 mm
* optionally (on request of customer)

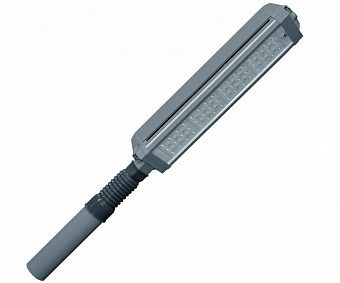

Road LED Luminaire 105W (MAG3)
