Road LED Luminaire80W (KASKAD-80)
Product code: KASKAD-80
|
Power |
80W |
|
| Luminous flux @ 4,000 К | 9,600lm | |
| Efficacy | 120lm/W | |
|
Ingress protection |
IP65 | |
Road LED Luminaire 80W (MAG3)
Product code: MAG3-085-136
|
Power |
80W |
|
|
Luminous flux @ 4,000 К |
10,000lm | |
|
Luminous flux @ 5,000 К |
10,000lm | |
| Efficacy | 125lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Need help? Send us a message
Replacement for 250W mercury and 150 sodium luminaires
- 1.5-3 times less power consumption;
- Operability at high mains instability;
- 5-10 times longer life with lumen maintenance;
- Elegant design.
Applications
- Apartment blocks surroundings;
- Open-air warehousing and production facilities;
- Roads of B and C categories;
- Sports and playgrounds.
Customization
- 2,700 - 6,500 K CCT
- Different number of LEDs, each time divisible by 12
- Pole diameter 60 & 76 mm
- Different housing colour
| Power | 80W |
| Voltage / Frequency | 176-276V / 50Hz |
| Voltage | 100-276V* |

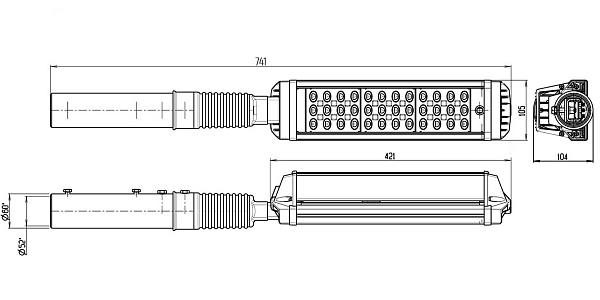

| Dimensions, LхWхH | 805х105х104 mm |
| Power factor | >0,97 |
| Luminous flux @ | |
| 4,000 К | 10,000 lm |
| 5,000 К | 10,000 lm |
| Efficacy | 125lm/W |

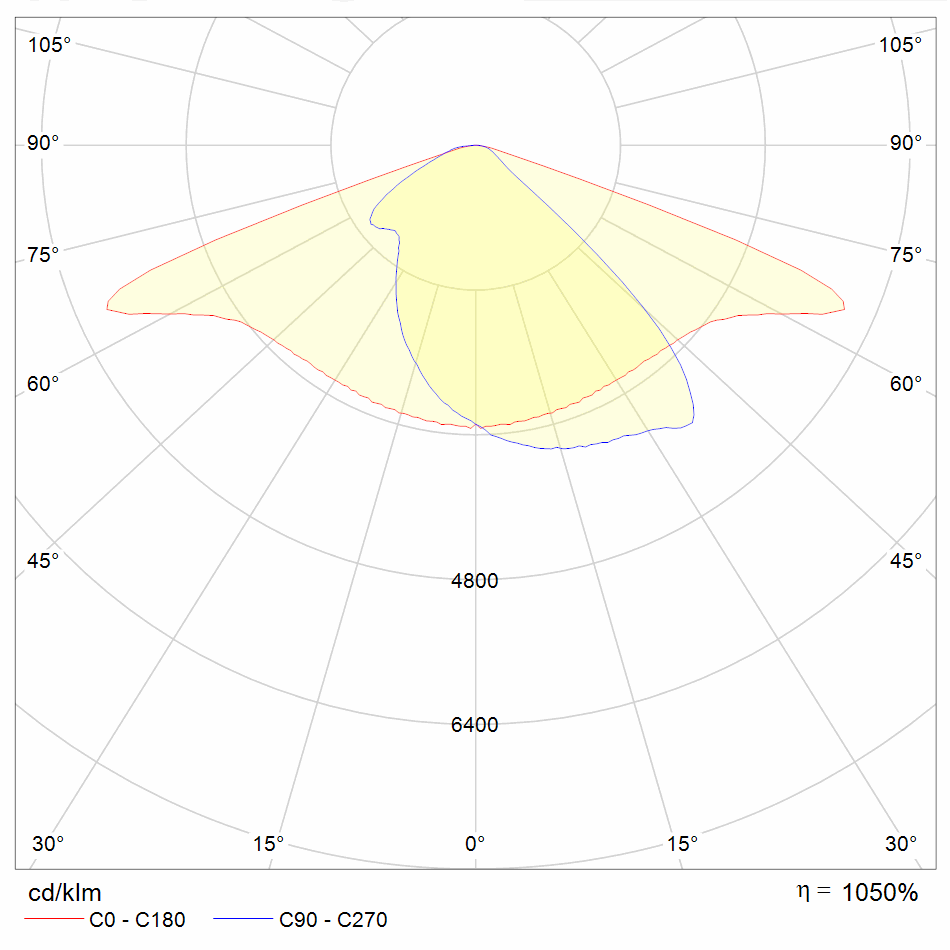

| Light distribution diagrams, cd/1000 lm | wide (asymmetric), cosine, deep |
| CRI, Ra | 70, 80, 90 |
| Number of LEDs, pcs | 36 |
| Ingress protection | IP67 |
| IK code | IK10 |
| Operating temperatures | -45°С to +50°С |
| Luminaire lifecycle | >50,000 hrs |
| LEDs lifecycle | >100,000 hrs |
| Electrical Safety Classification | I,II |
| Operating conditions | F |
| Wire section | 3х0,75 mm² |
| Mounting diameter | 48, 60 mm |
| Weight ntw/gross | 4,7kg / 4,9kg |
| * optionally (on request of customer) |
Road LED Luminaire 27W (MAG3)
Product code: MAG3-030-112
|
Power |
27W |
|
| Luminous flux @ 4,000 К | 3,400lm | |
|
Luminous flux @ 3,000 К |
3,250lm | |
| Efficacy | 126lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Road LED Luminaire 40W (MAG3)
Product code: MAG3-045-112
|
Power |
40W |
|
| Luminous flux @ 4,000 К | 5,000lm | |
|
Luminous flux @ 3,000 К |
5,000lm | |
| Efficacy | 126lm/W | |
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
Road LED Luminaire 158W (MAG4)
Product code: MAG4-160-236
|
Power |
155W |
|
| Luminous flux @ 4,000 К |
20,700lm |
|
|
Luminous flux @ 5,000 К |
20,700lm |
|
|
Efficacy |
135lm/W |
|
|
Ingress protection |
IP67 | |
| IK code | IK10 | |
