Industrial LED Luminaire 255W Suspended (INDUSTRY.3)

Industrial LED Luminaire 255W Suspended (INDUSTRY.3) Industrial LED Luminaire 255W Suspended (INDUSTRY.3)
Product code: INDUSTRY.3-270-160/160 Replacement for 700W mercury luminaires
Power
255W
Luminous flux @ 4,000К
 34,500
Luminous flux @ 5.000К
 34,500
Efficacy 135lm/W
Ingress protection IP67
Full description
Get a quote
Need help? Send us a message

Applications

  • High bays;
  • Open spaces.

Main features

  • Optimised installation layout;
  • Lower operational costs;
  • Heat-dissipating aluminium housing;

Replacement for 700W mercury luminaires

  • 2.5 times less power consumption;
  • 3.5 times longer lifetime;
  • Mechanical robustness;
  • Stable operation in a wide operating temperature range and unstable supply;
  • Adjustable mounting height.
Power 255W
Voltage / Frequency 176-276V/ 50Hz
Voltage 100-276V*

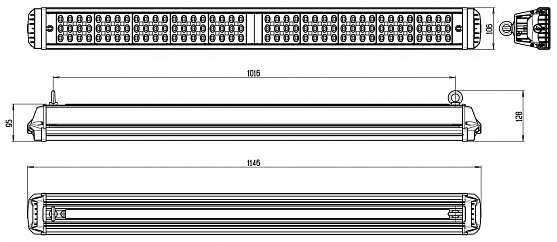

Dimensions, LхWхH 1,146x137x128 mm
Power factor >0.95
Luminous flux @
4,000 К 34,500 lm
5,000 К 34,500 lm
Efficacy 135 lm/W
Light distribution diagrams wide(asymmetric), deep, cosine
CRI, Ra 70, 80, 90
Number of LEDs 120
Ingress protection IP67
Operating temperatures -45°С to +50°С
Luminaire lifecycle 50,000 hrs
Electrical Safety Classification I
Wire section 3х0.75mm²
Weight ntw/gross 7.0kg / 7.6kg
Individual package 1,170х130х120 mm
* optionally (on request of customer)
