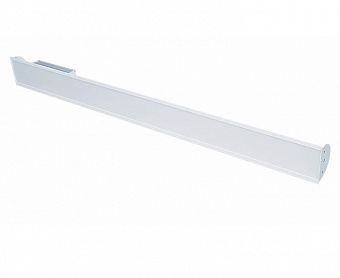

33W recessed linear LED luminaire
Product code: LINE.V33
|
Power |
33W |
| Luminous flux @ 4,000К | 3,500 |
| Luminous flux @ 5,000К | 3,550 |
| Efficacy | 108 lm/W |
| Ingress protection | IP30 |
Linear LED lighting
Recessed linear luminaires – to recess into gypsum and suspended ceilings.Suspended linear luminaires – to suspend with wire ropes.Surface linear luminaires – to mount onto surfaces.
Weather-resistant powder-coated aluminium housing.High-efficacy white LEDs are used as the light source.
Applications:
- Administrative and office spaces
- Supermarkets and sales floors
- Schools, hospitals
- Public institutions, etc.
Advantages:
- Energy consumption is 2-2.5 times lower than that of fluorescent luminaires
- Percent flicker < 5% (recessed and suspended)
- No specific requirements for disposal
- Safe when damaged, compared to energy-saving mercury lamps
- Infinite length and various configurations of the recessed and suspended luminaires due to innovative modular design
- Double protection of LEDs with Zener diodes and PLEDs for uninterrupted operation of a luminaire
- No light flicker creating eye hazards

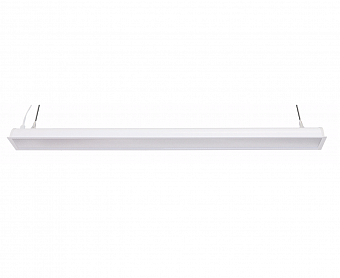

33W suspended linear LED luminaire
Product code: LINE.P33
|
Power |
33W |
| Luminous flux @ 4,000К | 3,500 |
| Luminous flux @ 5,000К | 3,550 |
| Efficacy | 108lm/W |
| Ingress protection | IP30 |

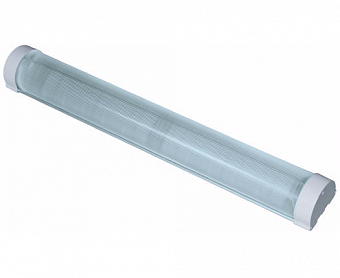

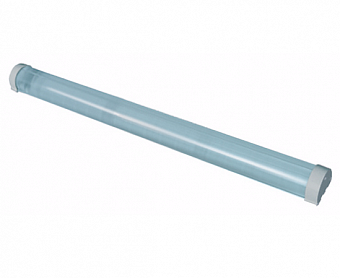

14W surface-mounted linear LED luminaire
Product code: LINE.N16
|
Power |
14W |
| Luminous flux @ 4,000К | 1,230 |
| Luminous flux @ 5,000К | 1,300 |
| Efficacy | 92 lm/W |
| Ingress protection | IP53 |
20W surface-mounted linear LED luminaire
Product code: LINE.N20
|
Power |
20W |
| Luminous flux @ 4,000К | 1,750 |
| Luminous flux @ 5,000К | 1,890 |
| Efficacy | 95 lm/W |
| Ingress protection | IP53 |

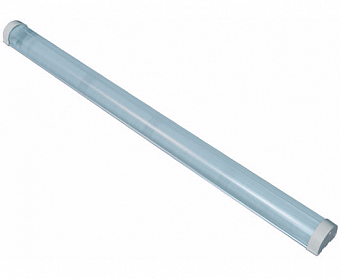

32W surface-mounted linear LED luminaire
Product code: LINE.N32
|
Power |
32W |
| Luminous flux @ 4,000К | 2,450 |
| Luminous flux @ 5,000К | 2,600 |
| Efficacy | 81 lm/W |
| Ingress protection | IP53 |
30W surface-mounted linear LED luminaire
Product code: LINELUX.N-030
|
Power |
30W |
| Luminous flux @ 4,000К | 3,300 |
| Efficacy | 110 lm/W |
| Ingress protection | IP30 |
40W surface-mounted linear LED luminaire
Product code: LINELUX.N-040
|
Power |
40W |
| Luminous flux @ 4,000К | 4,400 |
| Efficacy | 110 lm/W |
| Ingress protection | IP30 |
50W surface-mounted linear LED luminaire
Product code: LINELUX.N-050
|
Power |
50W |
| Luminous flux @ 4,000К | 5,500 |
| Efficacy | 110 lm/W |
| Ingress protection | IP30 |
60W surface-mounted linear LED luminaire
Product code: LINELUX.N-060
|
Power |
60W |
| Luminous flux @ 4,000К | 6,400 |
| Efficacy | 107 lm/W |
| Ingress protection | IP30 |
80W surface-mounted linear LED luminaire
Product code: LINELUX.N-080
|
Power |
80W |
| Luminous flux @ 4,000К | 8,400 |
| Efficacy | 107 lm/W |
| Ingress protection | IP30 |

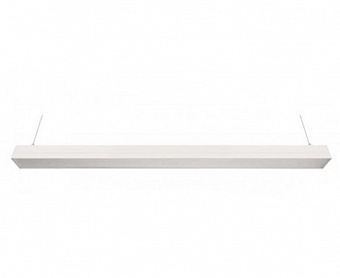

30W suspended linear LED luminaire
Product code: LINELUX.P-030
|
Power |
30W |
| Luminous flux @ 4,000К | 3,300 |
| Efficacy | 110 lm/W |
| Ingress protection | IP30 |
40W suspended linear LED luminaire
Product code: LINELUX.P-040
|
Power |
40W |
| Luminous flux @ 4,000К | 4,400 |
| Efficacy | 110 lm/W |
| Ingress protection | IP30 |
50W suspended linear LED luminaire
Product code: LINELUX.P-050
|
Power |
50W |
| Luminous flux @ 4,000К | 5,500 |
| Efficacy | 110 lm/W |
| Ingress protection | IP30 |
80W suspended linear LED luminaire
Product code: LINELUX.P-080
|
Power |
80W |
| Luminous flux @ 4,000К | 8,400 |
| Efficacy | 105 lm/W |
| Ingress protection | IP30 |
60W suspended linear LED luminaire
Product code: LINELUX.P-060
|
Power |
60W |
| Luminous flux @ 4,000К | 6,400 |
| Efficacy | 107 lm/W |
| Ingress protection | IP30 |
