Street and road LED lighting

Energy-efficient replacement for luminaires with mercury and sodium lamps.

Main features:

  • Ideal for roads of any category.
  • Weather-resistant powder-coated aluminium housing.
  • Innovative heat sink design for efficient heat dissipation.
  • High-efficacy LEDs from Osram and Cree.

Applications

  • Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways).
  • Industrial estates and warehouses.
  • Tunnels.
  • Railway stations and tracks.

Advantages

  • 1.5-3 times lower energy consumption compared to luminaires with similar flux that use sodium and mercury lamps,
  • Different beam angles due to a modular lens design, including asymmetric wide beam for required illuminance on a maximum surface,
  • No light flicker harmful for eyes,
  • No specific requirements for disposal,
  • Double protection of LEDs with Zener diodes and PLEDs to guarantee continuous operability,
  • Input voltage up to 300V,
  • Integrated surge protection up to 10kV (optional),
  • Extruded aluminium housing with a flat and even top to protect it from debris accumulation (foliage, birds' droppings) — the temperature performance of the luminaire is not affected,
  • LED modules are water- and dust-proof which ensures no loss in lumen output,
  • Patented «floating» design of LED modules without screws — to even off thermal expansion ratios of a housing, LED boards and lenses,
  • Power supply in the MAG4 series is thermally isolated from the LED module so that its temperature doesn't affect LEDs, and vice versa. It translates into a longer,
  • lifetime of a PSU and a luminaire in general. Besides, a PSU is fixed at the bottom of its compartment — to protect it from overheating in tropical climates where some parts of a luminaire, even in off mode, can be heated up to 80°C in direct sunlight,
  • MAG3 and MAG4 efficacy 130-140 lm/W,
  • Lifespan of LED modules over 100,000 hrs,
  • Optimum quality/price ratio.

Customisation

  • 2,700 - 6,500 K CCT
  • Different number of LEDs, each time divisible by 12
  • Pole diameter 60 & 76 mm
  • Different housing colour

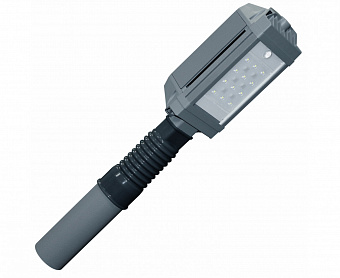

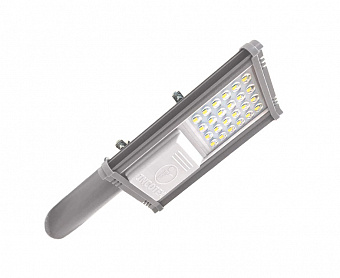

Road LED Luminaire 14W (MAG3)

Road LED Luminaire 14W (MAG3)

Product code: MAG3-014-112
Power
14W
Luminous flux @ 4,000 К 1,800lm
Luminous flux @ 5,000 К 1,800lm
Efficacy  128lm/W
Ingress protection
IP67
 IK code IK10

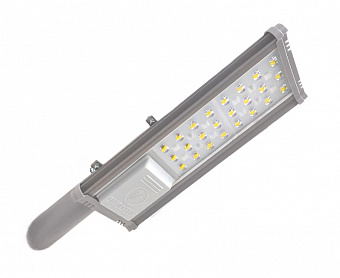

Road LED Luminaire 27W (MAG3)

Road LED Luminaire 27W (MAG3)

Product code: MAG3-030-112
Power
27W
Luminous flux @ 4,000 К 3,400lm
Luminous flux @ 3,000 К
3,250lm
Efficacy  126lm/W
Ingress protection
IP67
 IK code IK10
Road LED Luminaire 40W (MAG3)

Road LED Luminaire 40W (MAG3)

Product code: MAG3-045-112
Power
40W
Luminous flux @ 4,000 К 5,000lm
Luminous flux @ 3,000 К
5,000lm
Efficacy  126lm/W
Ingress protection
IP67
 IK code IK10

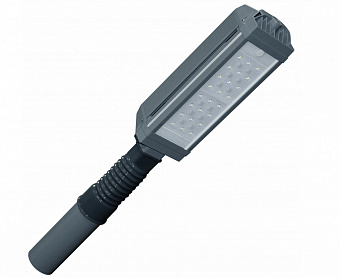

Road LED Luminaire 54W (MAG3)

Road LED Luminaire 54W (MAG3)

Product code: MAG3-060-124
Power
54W
Luminous flux @ 4,000 К
6,800lm
Luminous flux @ 5,000 К
6,800lm
Efficacy  126lm/W
Ingress protection
IP67
IK code IK10

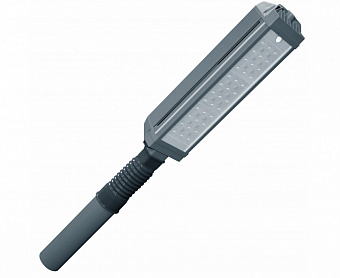

Road LED Luminaire 80W (MAG3)

Road LED Luminaire 80W (MAG3)

Product code: MAG3-085-136
Power
80W
Luminous flux @ 4,000 К
10,000lm
Luminous flux @ 5,000 К
10,000lm
Efficacy  125lm/W
Ingress protection
IP67
IK code IK10
Road LED Luminaire 105W (MAG3)

Road LED Luminaire 105W (MAG3)

Product code: MAG3-105-148
Power
105W
Luminous flux @ 4,000 К 13,600lm
Luminous flux @ 5,000 К 13,600lm
Efficacy  130lm/W
Ingress protection
IP67
IK code IK10

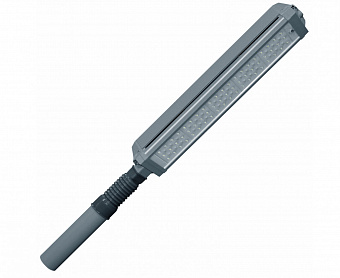

Road LED Luminaire 132W (MAG3)

Road LED Luminaire 132W (MAG3)

Product code: MAG3-135-160
Power
132W
Luminous flux @ 4,000 К 17,500lm
Luminous flux @ 5,000 К 17,500lm
Efficacy  135lm/W
Ingress protection
IP67
IK code  IK10

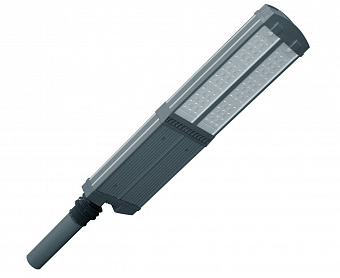

Road LED Luminaire 158W (MAG4)

Road LED Luminaire 158W (MAG4)

Product code: MAG4-160-236
Power
155W
Luminous flux @ 4,000 К 20,700lm
Luminous flux @ 5,000 К
20,700lm
Efficacy
135lm/W
Ingress protection
IP67
IK code  IK10

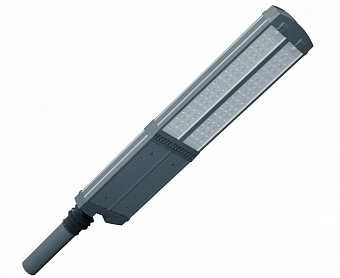

Road LED Luminaire 215W (MAG4)

Road LED Luminaire 215W (MAG4)

Product code: MAG4-215-248
Power
205W
Luminous flux @ 4,000 К 27,500lm
Luminous flux @ 5,000 К 27,500lm
Efficacy  131lm/W
Ingress protection
IP67
IK code IK10

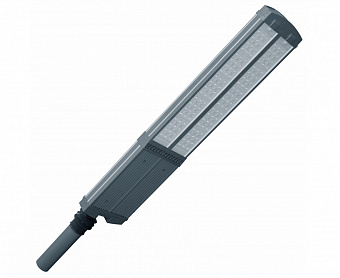

Road LED Luminaire 255W (MAG4)

Road LED Luminaire 255W (MAG4)

Product code: MAG4-270-260
Power
255W
Luminous flux @ 4,000 К 34,500lm
Luminous flux @ 5,000 К 34,500lm
Efficacy 135lm/W
Ingress protection  IP67
IK code IK10
